Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
CAUTION:
Never damage the back door panel.
REMOVAL
CAUTION:
Remove back door pull handle. Refer to Removal and Installation.
Remove back door finisher cap (without automatic back door system models) or automatic back door switch finisher (with automatic back door system models).
- Back door finisher cap: Refer to Removal and Installation.
- Automatic back door switch finisher: Refer to Removal and Installation.

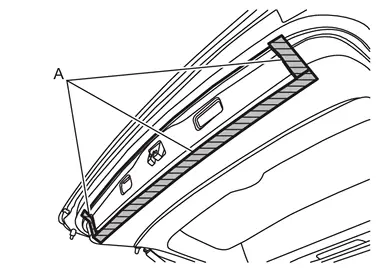

Apply protective tapes (A) on back door inner finisher to protect it from damage.

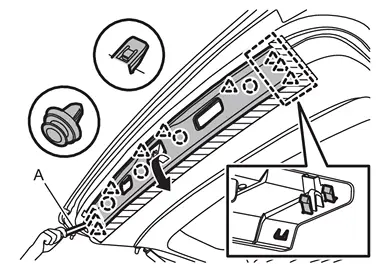

Disengage back door lower finisher fixing clips and pawls using a remover tool (A), and then back door lower finisher.
 | : Clip |
 | : Pawl |
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
Check in advance that clips and pawls are accurately aligned with the portions on back door panel, and then install by pressing in.
