Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
CAUTION:
Never damage the back door panel.
REMOVAL
Fully open back door.

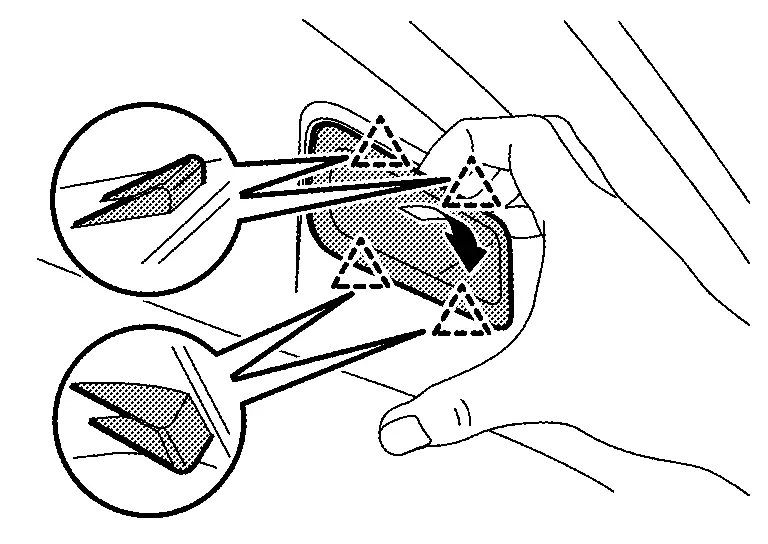

Disengage back door pull handle fixing pawls, and then remove back door pull handle.
 | : Pawl |
INSTALLATION
Note the following item, and then install in the reverse order of removal.
CAUTION:
Check in advance that pawls are accurately aligned with the portions on back door panel, and then install by pressing in.
