Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove front seatback blower motor. Refer to Removal and Installation.

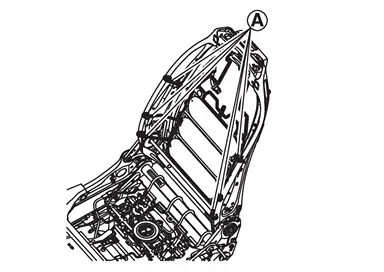

Disengage fixing portions
and then remove front seat lumbar support unit.
Disconnect front seat pneumatic control unit connector (4 way lumbar support) or front seat lumbar support air pump connector (2 way lumbar support) and then remove front seat lumbar support unit from the front seat.
INSTALLATION
Install in the reverse order of removal.
