Nissan Armada 2025-2026 Service and Repair Manual: Unlock procedures
NOTE:
Release lock according to the following procedures when lock cannot be unlocked due to a malfunction of back door lock or battery discharge.

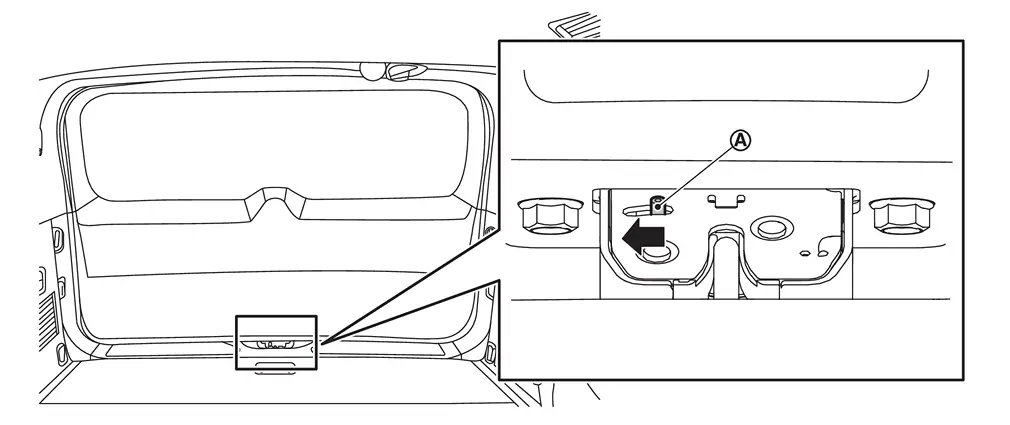

Operated opener lever
of back door lock & closure assembly to unlock back door lock.
When lock cannot be unlocked operating opener lever, release lock according to the following procedures.Remove upper part of back door inner finisher to secure work space. Refer to Removal and Installation.
CAUTION:
Replace back door inner finisher when it is damaged.

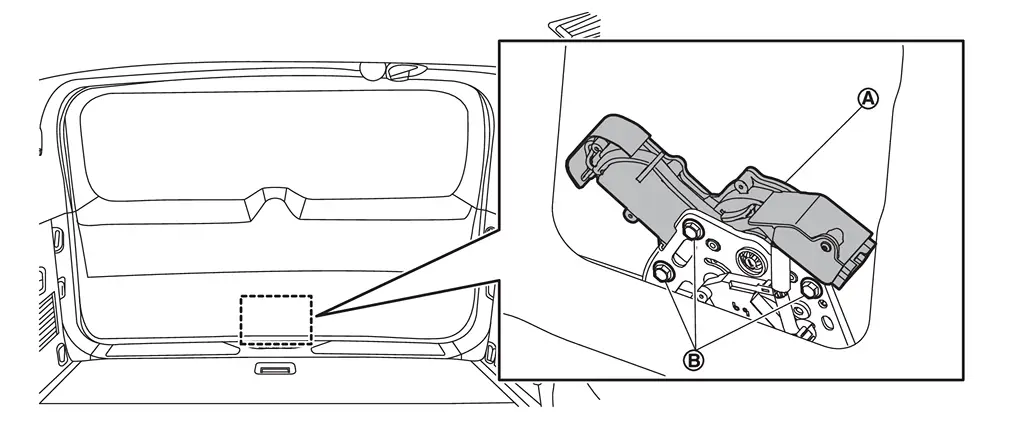

Remove mounting bolts
, and then remove back door lock actuator .
CAUTION:
When removing back door lock actuator, replace back door lock & closure assembly with a new one. Refer to Removal and Installation.
Operated opener lever of back door lock & closure assembly to unlock back door lock.
Inspection
After opening and closing the back door, check that door is fixed to the vehicle body normally.
Check the lock/unlock operation of back door lock.
Check the back door lock lubrication condition. If ne ...
