Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
CAUTION:
Perform work with 2 workers, because it is heavy weight.
Support hood with a proper material and use protective tape or shop cloth to protect hood and body from falling and damage when removing and installing hood stay.
REMOVAL
Support hood assembly with a suitable material to prevent it from falling.
WARNING:
Injury may occur if hood assembly is not supported with a proper material when removing hood stay.

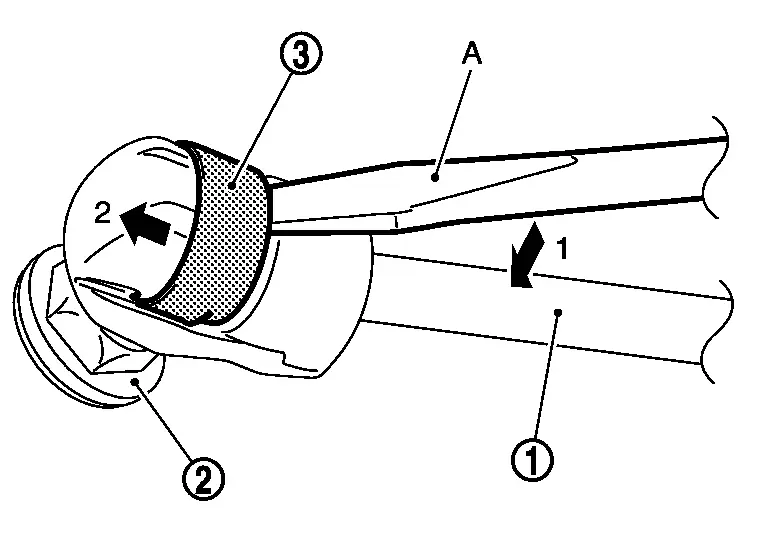

Remove metal clip
located on connection between hood stay
and stud ball part
of hood assembly using a remover tool (A) according to the numerical order 1→2 indicated by arrows as shown in the figure.
Remove hood stay from hood assembly.
Repeat the same operation to disengage hood stay from stud ball, and then remove hood stay.
Loosen stud ball, and then remove stud ball from hood assembly.
INSTALLATION
Install in the reverse order of removal.
Hood Stay
...
Disposal
CAUTION:
When performing disposal operation, wear the protective glasses and protective gloves.
Fix hood stay using a vise (C).
CAUTION:
When cutting a hole on hood stay, always cover a hacksaw (A) ...
