Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL

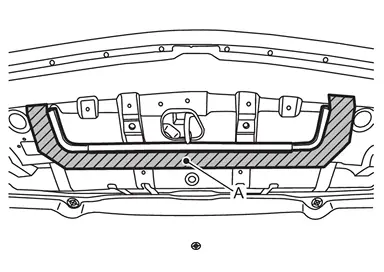

Apply protective tape (A) on the part to protect it from damage.

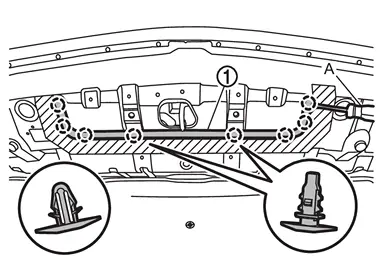

Disengage radiator core seal fixing clips using a remover tool (A), and then remove radiator core seal
.
 | : Clip |
INSTALLATION
Install in the reverse order of removal.
