Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Rear Door Parting Seal Front
Fully open rear door.
Remove rear door parting seal front clip.Apply protective tape (A) to rear door panel around rear door parting seal front clip for preventing damage.
 | : Pawl |
Remove rear door parting seal front from rear door panel while peel off double-sided tape.
Remove remained double-sided tape with a double-sided tape remover from rear door parting seal front and rear door panel.
Rear Door Parting Seal Lower
Fully open rear door.

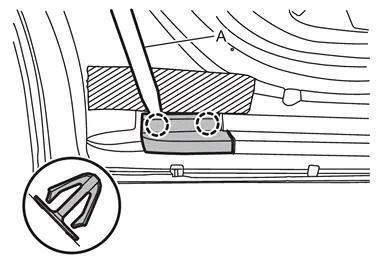

Remove rear door parting seal lower 1.Apply protective tape (A) to rear door panel around rear door parting seal lower 1 for preventing damage.
 | : Clip |

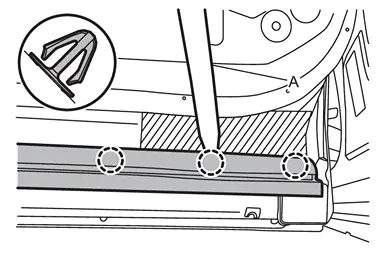

Remove rear door parting seal lower 2.Apply protective tape (A) to rear door panel around rear door parting seal lower 2 for preventing damage.
| : Clip |
INSTALLATION
Note the following item, install in the reverse order of removal.
CAUTION:
Never reuse double-sided tape. Always replace it with a new one when it is removed.
