Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
CAUTION:
Never damage rear door glass and rear door panel.
Remove rear door glass run. Refer to Removal and Installation.
Remove rear door inner frame rear. Refer to Removal and Installation.
Fully close rear door glass.
Remove mounting bolt
, and then remove rear door lower sash lower.
CAUTION:

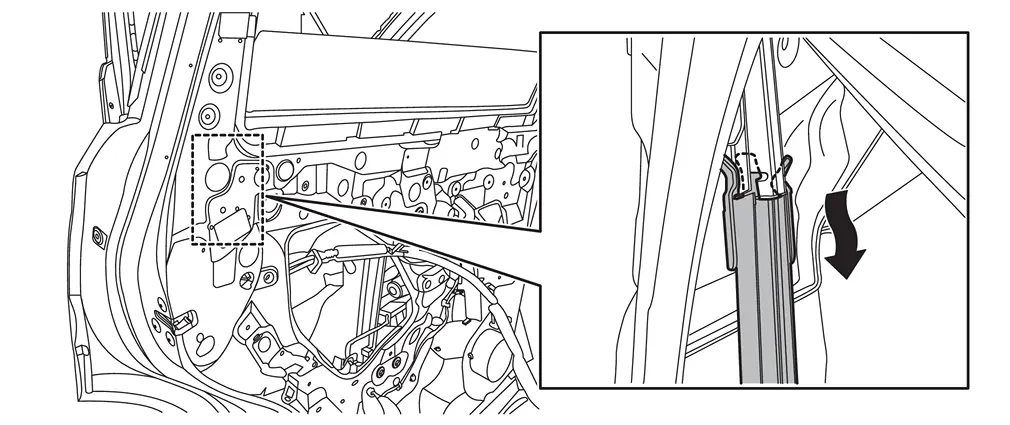

When removing rear door lower sash lower, disengage fixing portion by arrow direction as shown in the figure.
Fully open rear door glass.
Remove hole seal 1
and hole seal 2
from rear door panel.
Loosen upper side mounting bolt and remove lower side mounting bolt
, and then remove rear door lower sash upper.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:

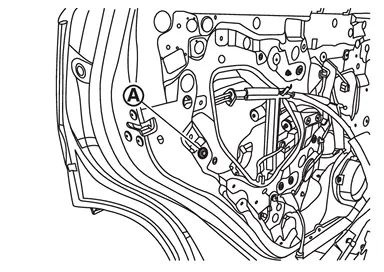

When installing, insert portion
of rear door lower sash lower to hole of rear door lower sash upper as shown in the figure.
Tighten rear door lower sash mounting bolt to the specified torque. Refer to Exploded View.
Never reuse hole seal. Always replace it with a new one when it is removed.
After installing, check the rear door glass can be move smoothly. If it could not move smoothly, check the rear door glass run and rear door lower sash lower glass run has installed to rear door lower sash lower and upper correctly.
