Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove front grille upper. Refer to Removal and Installation (OFF ROAD MODELS) or Removal and Installation (CITY MODELS).
Disconnect hood lock switch harness connector (if equipped).
Remove hood lock assembly mounting bolts, and then remove hood lock assembly.
CAUTION:
Never bend hood lock control cable assembly strongly.

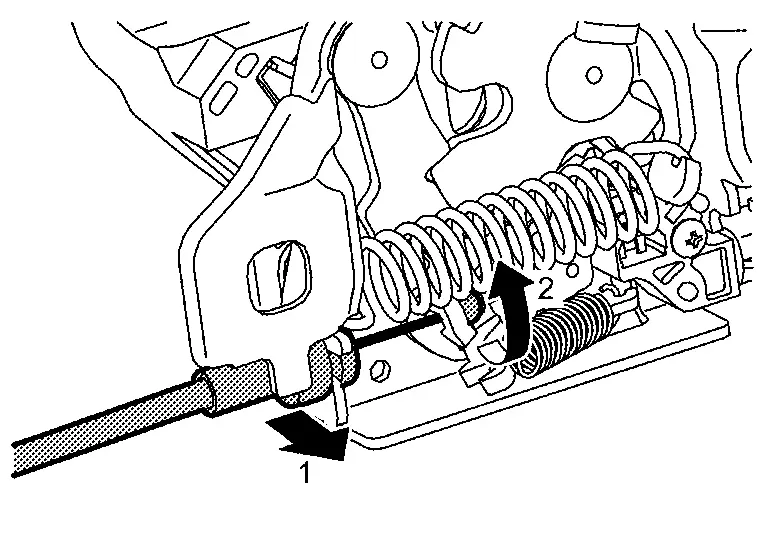

Disconnect hood lock control cable assembly from hood lock according to the numerical order 1→2 indicated by arrows as shown in figure.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
Check that hood lock control cable assembly is properly engaged with hood lock assembly.
When installation, perform hood fitting adjustment. Refer to Adjustment.
After installation, perform hood lock control inspection. Refer to Inspection.
Inspection
NOTE:
If the hood lock control cable assembly is bent or deformed, replace it.
Check that secondary latch is securely engaged with bracket from dead load of hood assembly.
Check that primary latch is ...
