Nissan Armada 2025-2026 Service and Repair Manual: Inspection
NOTE:
If the hood lock control cable assembly is bent or deformed, replace it.

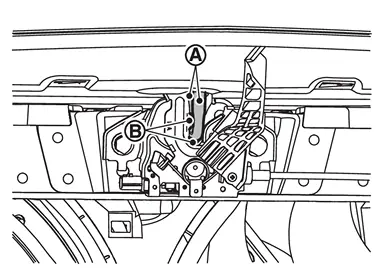

Check that secondary latch is securely engaged with bracket from dead load of hood assembly.

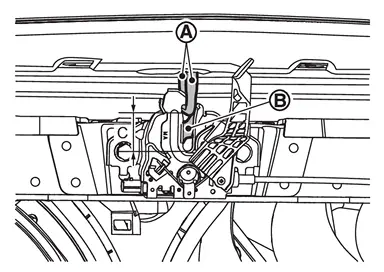

Check that primary latch
is securely engaged with hood striker
when hood assembly is closed [freefall from approximately 200 mm (7.87 in) height].
CAUTION:
Never free-fall hood assembly from a height of 300 mm (11.81 in) or more.
While operating the hood lock control handle carefully, check that the front end of the hood is lifted by approximately 20 mm (0.79 in) (C). Also, check that the hood lock control handle returns to the original position.
| Hood striker | | Primary latch |
Check that operating force of hood lock control handle shall be less than 49 N (5.0 kg, 11.0 lb).

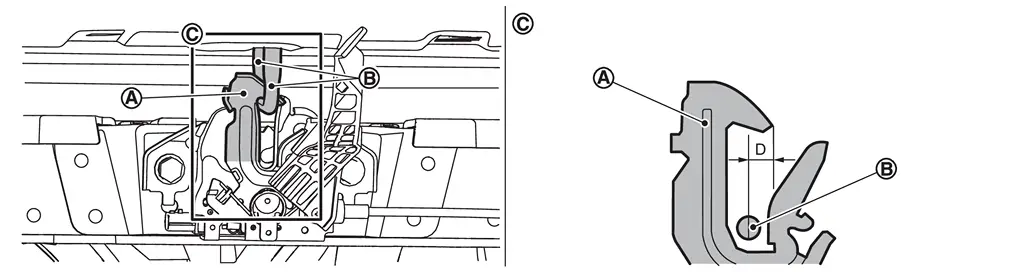

Check pitch that secondary latch is properly engaged with hood striker [8.1 mm (0.319 in) MIN] (D).
Install so that static closing force of hood is 490 N (50.0 kg, 110.0 lb) or Less.

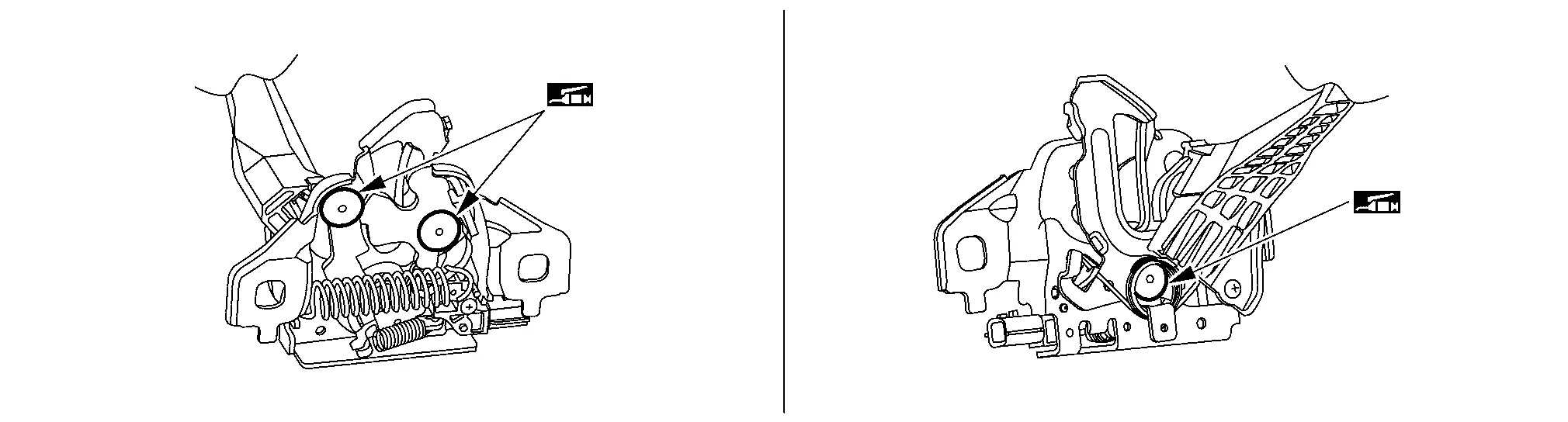

Check the hood lock assembly lubrication condition. If necessary, apply body grease to hood lock assembly.
 | : Body grease |
Removal and Installation
REMOVAL
Remove front grille upper. Refer to Removal and Installation (OFF ROAD MODELS) or Removal and Installation (CITY MODELS).
Disconnect hood lock switch harness connector (if equipped).
Remove ho ...
