Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation

REMOVAL

Remove front door finisher. Refer to Removal and Installation.

Remove front door module assembly. Refer to Removal and Installation.

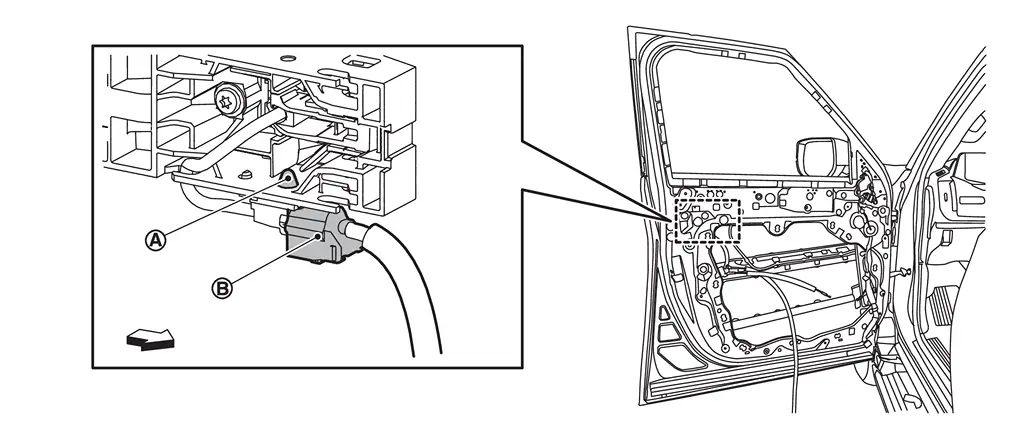

Disconnect front door outside handle harness connector , and then disengage front door outside handle harness connector fixing clip (if equipped).

: Vehicle front

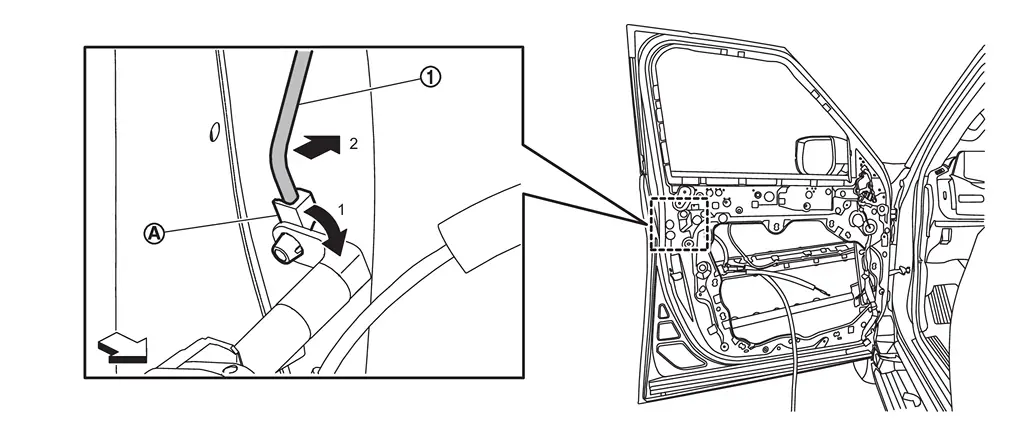

Remove key rod from key rod holder of front door lock assembly according to the numerical order 1→2 indicated by arrows as shown in figure (driver side).

: Vehicle front

Apply protective tape (A) on the part to protect it from damage.

Insert a remover tool (A) at the notch of the escutcheon cover bottom and disengage fixing pawls, and then remove escutcheon cover.

: Pawl

NOTE:

If escutcheon cover cannot be removed from the bottom, remove it from the top.

Slide front door outside handle grip toward rear of vehicle and remove it according to the numerical order 1→2 indicated by arrows as shown in figure.

NOTE:

Expand the lib of front door outside handle bracket indicated by arrows as shown in figure to remove the handle easily.

Remove door side grommet .

Loosen TORX bolt from grommet hole.

Remove escutcheon base from front door panel.

Disengage front gasket and rear gasket fixing pawls, and then remove front gasket and rear gasket.

: Pawl

Disengage front door outside handle cable fixing clip from front door outside handle bracket.

: Clip

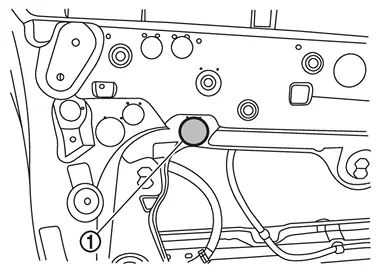

Remove hole seal .

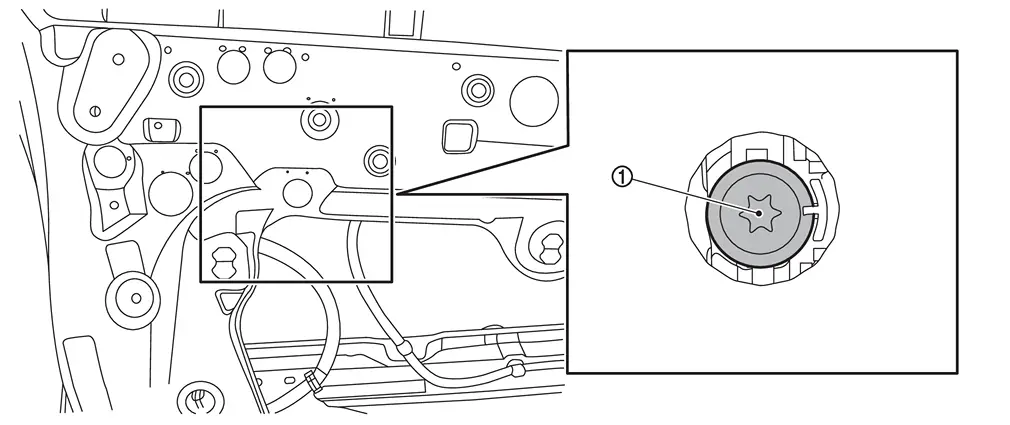

Loosen front door outside handle bracket mounting TORX bolt from service hole.

Slide front door outside handle bracket toward front of vehicle and remove it.

: Vehicle front

Disconnect front door outside handle cable from front door outside handle bracket according to the numerical order 1→3 indicated by arrows as shown in figure.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Check front door outside handle grip part for lubrication condition. Apply body grease if necessary.



  : Body grease

• Check front door outside handle bracket parts for lubrication condition. Apply body grease if necessary.



  : Body grease

• When connecting front door outside handle cable to front door outside handle assembly, check that front door outside handle cable is properly engaged with front door outside handle assembly.

• When installing front door outside handle, be careful that front door outside handle harness and body side harness are routed normally.

• When installing, be careful that front door outside handle cable is routed normally.

• When installing key rod, rotate key rod holder until a click is felt (driver side).

• After installation, check front door lock. Refer to Inspection.

• Never reuse hole seal. Always replace it with a new one when it is removed.

• Never reuse escutcheon cover. Always replace it with a new one when it is removed.
