Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove fuel filler base assembly. Refer to Removal and Installation.

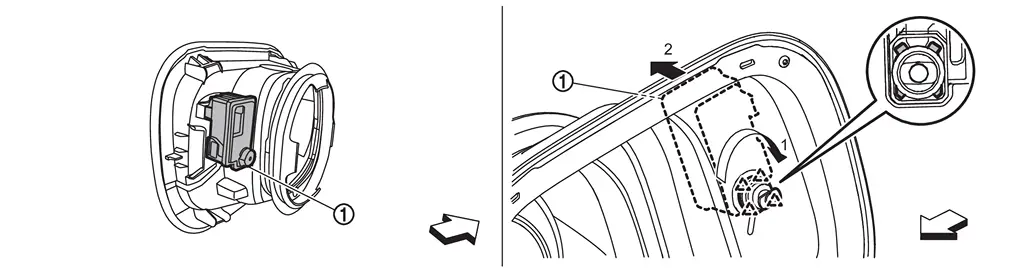

Rotate and disengage fuel filler lid lock assembly
fixing pawls according to the numerical order 1→2 indicated by arrows as shown in the figure, and then remove fuel filler lid lock assembly.
 | : Pawl |
 | : Vehicle front |
INSTALLATION
Note the following item, and then install in the reverse order of removal.
CAUTION:
After installation, check fuel filler lid base assembly open/close operation.
