Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL

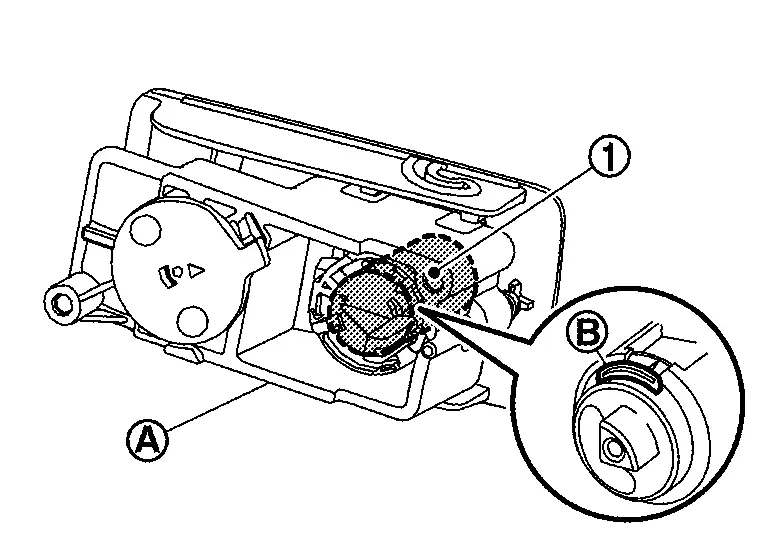

NOTE:
Glove box lid lock key cylinder is integrated with glove box assembly. So, glove box lid lock key cylinder cannot be removed from glove box assembly and it cannot be replaced without glove box assembly.
Remove glove box lid assembly. Refer to Removal and Installation.
INSTALLATION

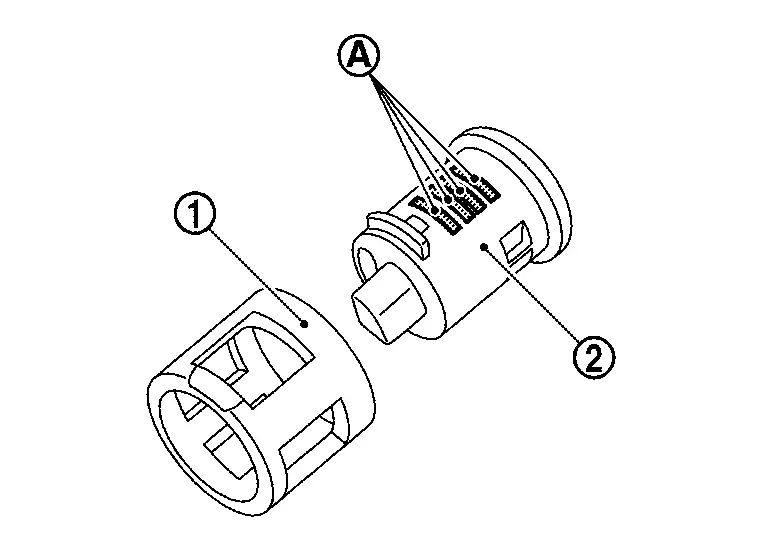

CAUTION:
Never pull out glove box lid lock cylinder
from sleeve
. Otherwise, tumbler
pops out glove box lid lock key cylinder.

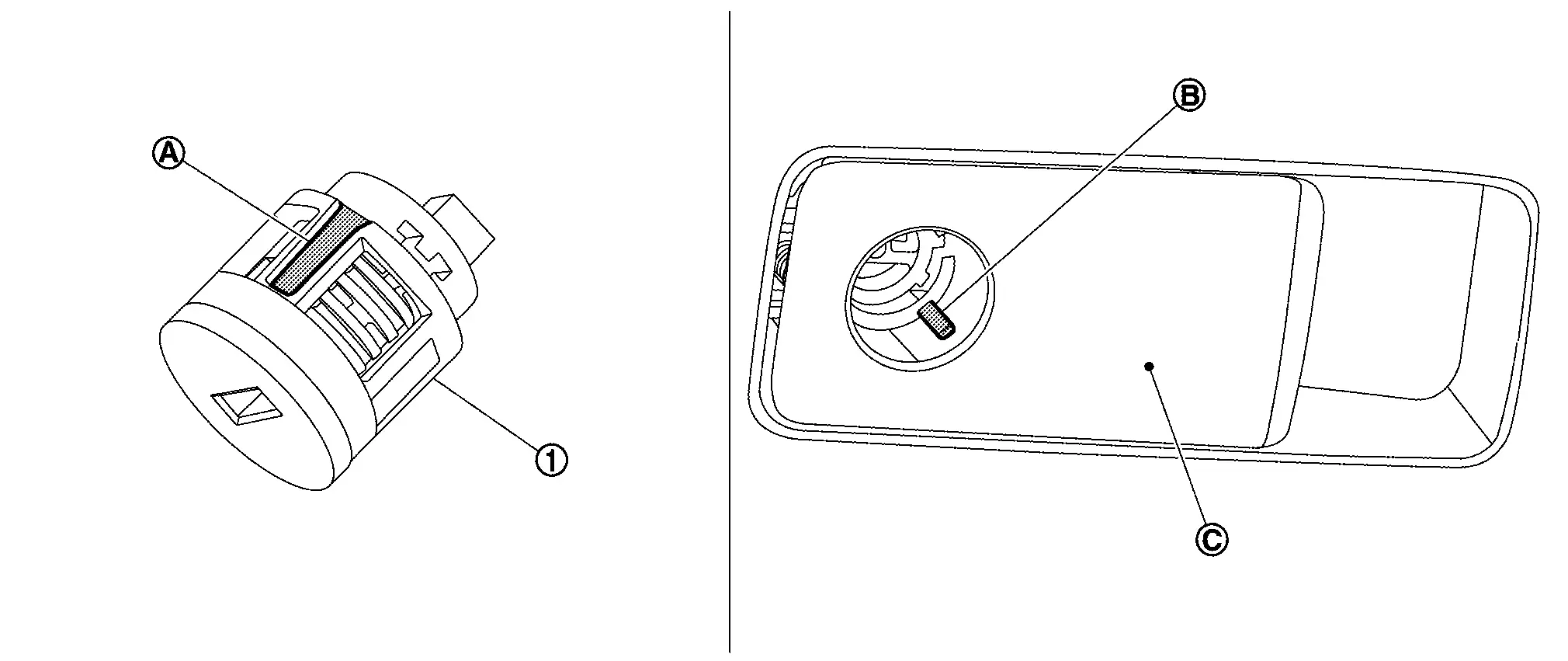

Align groove
of sleeve with projection
of insert hole of glove box latch handle
of glove box assembly.
Push to install glove box lid lock key cylinder
for glove box latch handle of glove box assembly until locked tumble stopper .
Install glove box assembly. Refer to Removal and Installation.
CAUTION:
After installation, check glove box assembly open/close, lock/unlock operation.
Exploded View
Glove box assembly Sleeve Glove box lid lock cylinder ...
