Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
Release the lock knob at the back of the Intelligent Key and remove the mechanical key.

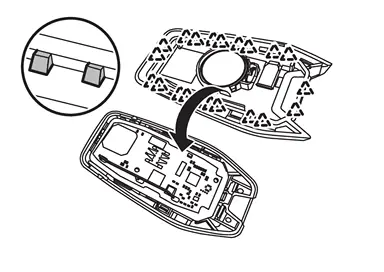

Insert remover tool (A) wrapped with a cloth into the slit 1 of the corner and twist 2 it to separate the upper part from the lower part.
CAUTION:
Never touch the circuit board or battery terminal.
The Intelligent Key is water-resistant. However, if it does get wet, immediately wipe it dry.
Replace the battery with new one.
Battery replacement :Coin-type lithium battery (CR2032) Upper and lower parts fixing pawls, and then push them together until it is securely closed.
: Pawl CAUTION:
When replacing battery, keep dirt, grease, and other foreign materials off the electrode contact area.
After replacing the battery, check that all Intelligent Key functions work normally.
Other materials:
Precaution for Chassis Control
Never disassemble the chassis control module.
The parts must not be reused if they are dropped.
Never perform "Active Test" while driving the vehicle.
When the intelligent trace control function is activated, the driver may feel some vibration on the brake pedal, hear operating sounds, or feel the d ...
Removal & Installation
CAUTION:
Before replacing audio amp, perform "ADDITIONAL SERVICE WHEN REPLACING audio AMP". Refer to Work Procedure.
REMOVAL
Remove luggage side lower finisher RH. Refer to Removal and Installation.
Remove the audio amp. mounting nut , and then remove the audio amp. .
Disconnect the audio amp. har ...
