Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
CAUTION:
Never excessively pull rear door glass run.
Remove rear door sash cover. Refer to Removal and Installation.
Remove rear door sash inner cover and inside seal. Refer to Removal and Installation.
Reconnect power window main switch connector with rear door finisher.
NOTE:

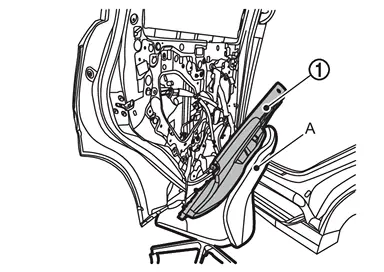

The rear door finisher
is big and heavy component. When reconnect it, use the chair/similar something (A) to support rear door finisher as shown in the figure.
Fully open rear door glass.
Disengage rear door glass run from rear door panel according to numerical order 1→2 indicated by arrows as shown in the figure, and then remove rear door glass run.
CAUTION:
Should be pulled out slowly to prevent damage rear door glass run.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
When installing rear door glass run between rear door panel/rear door lower sash and rear door glass, make sure engage glass run sash of rear door panel and rear door lower sash.
