Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
CAUTION:
Always work with a helper.
REMOVAL
Remove moonroof unit assembly. Refer to Removal and Installation.

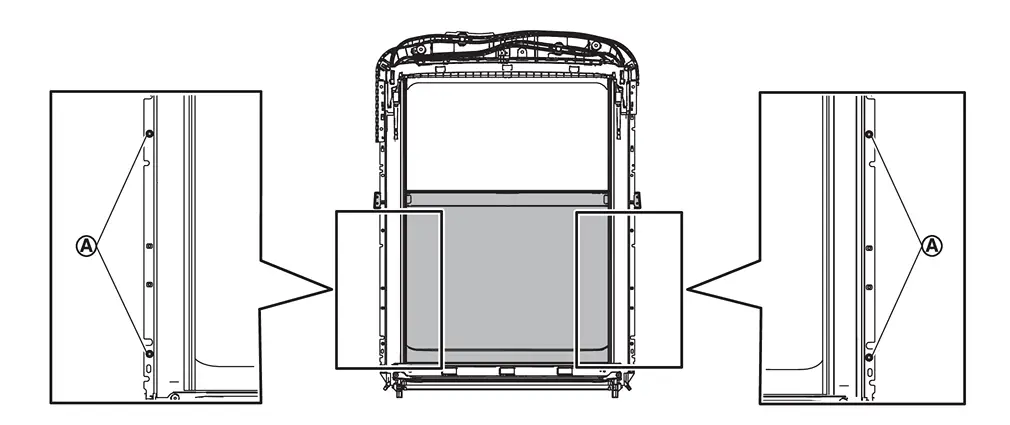

Remove rear moonroof glass fixing screws
, and then remove rear moonroof glass.
Remove fixing clips, and then remove center reinforce frame from rear moonroof glass.
 | : Clip |
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
After installing the rear moonroof glass, perform the leak test and check that there is no malfunction.
After installation, perform fitting adjustment. Refer to Adjustment.
Exploded View
Refer to Exploded View. ...
Adjustment
Rear moonroof glass Glass lid Roof panel
NOTE:
Standard of surface height is given assuming that the glass upper side status is (+), and the glass lower side status is (−) relative to the roof ...
