Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

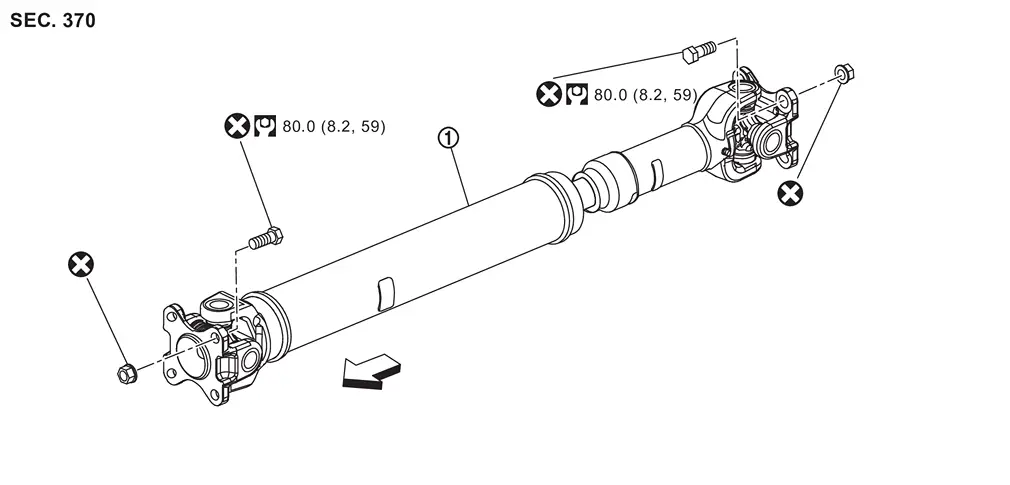

REMOVAL
 | Propeller shaft assembly | ||||
 : Vehicle front | |||||
 : N·m (kg-m, ft-lb) | |||||
 : Always replace after every disassembly. | |||||

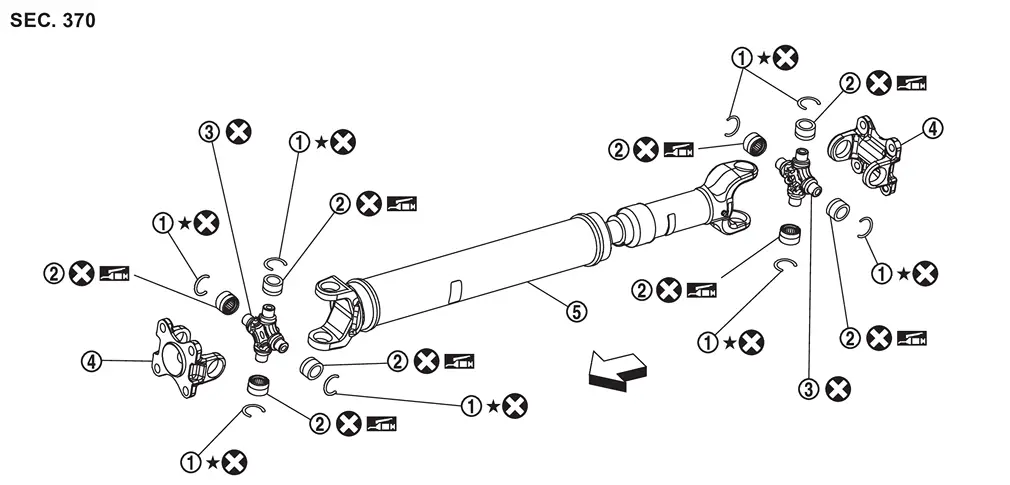

DISASSEMBLY
| Snap ring |  | Journal bearing |  | Journal |
 | Flange yoke |  | Propeller shaft tube | ||
 : Select with proper thickness. | |||||
| : Vehicle front | |||||
| : Always replace after every disassembly. | |||||
 : Apply multi-purpose grease. | |||||
NOTE:
Replace , , and as a set.
Removal and Installation
WARNING:
REMOVAL
Shift transmission to the neutral position, and then release parking brake.
Remove engine under cover. Refer to Exploded View.
Put matching marks on propeller shaft flange yoke and t ...
