Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Fully open front door.
Apply a protective tape (A) on the parts to protect it from damage.

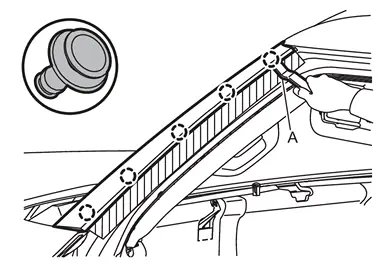

Disengage fixing clips using a remover tool (A).
 | : Clip |
Cut double-sided tape using a remover tool and cutter.
CAUTION:
Remove double-sided tape remaining on body side panel with a double-sided tape remover, after removing front pillar finisher.

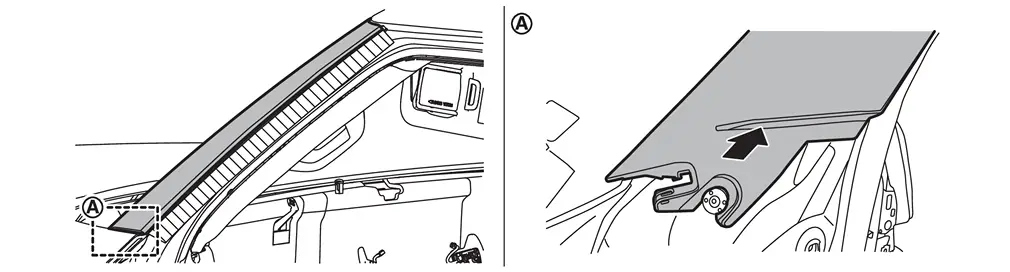

Remove front pillar finisher as shown in the figure.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
Visually check the clips for deformation and damage during installation. Replace with new ones if necessary.
When installing front pillar finisher, check that clips are securely fitted in body panel holes, and press them it.
Always replace double-sided tape with a new one, if front pillar finisher is reused.
Degrease front pillar finisher mounting surface of body side panel.
Paint grain or dust on mounting surface of front pillar finisher may spoil exterior appearance if it remains. Clean the mounting surface and check that no paint grain or dust remains, before starting the operation.
Never wash the vehicle within 24 hours after installing so as to keep adhesive.
Exploded View
Grommet Front pillar finisher Double-sided tape
[t: 2.5 mm (0.098 in)] : Clip : Always replace after every disassembly. ...
