Nissan Armada 2025-2026 Service and Repair Manual: Work Procedure (Group B)

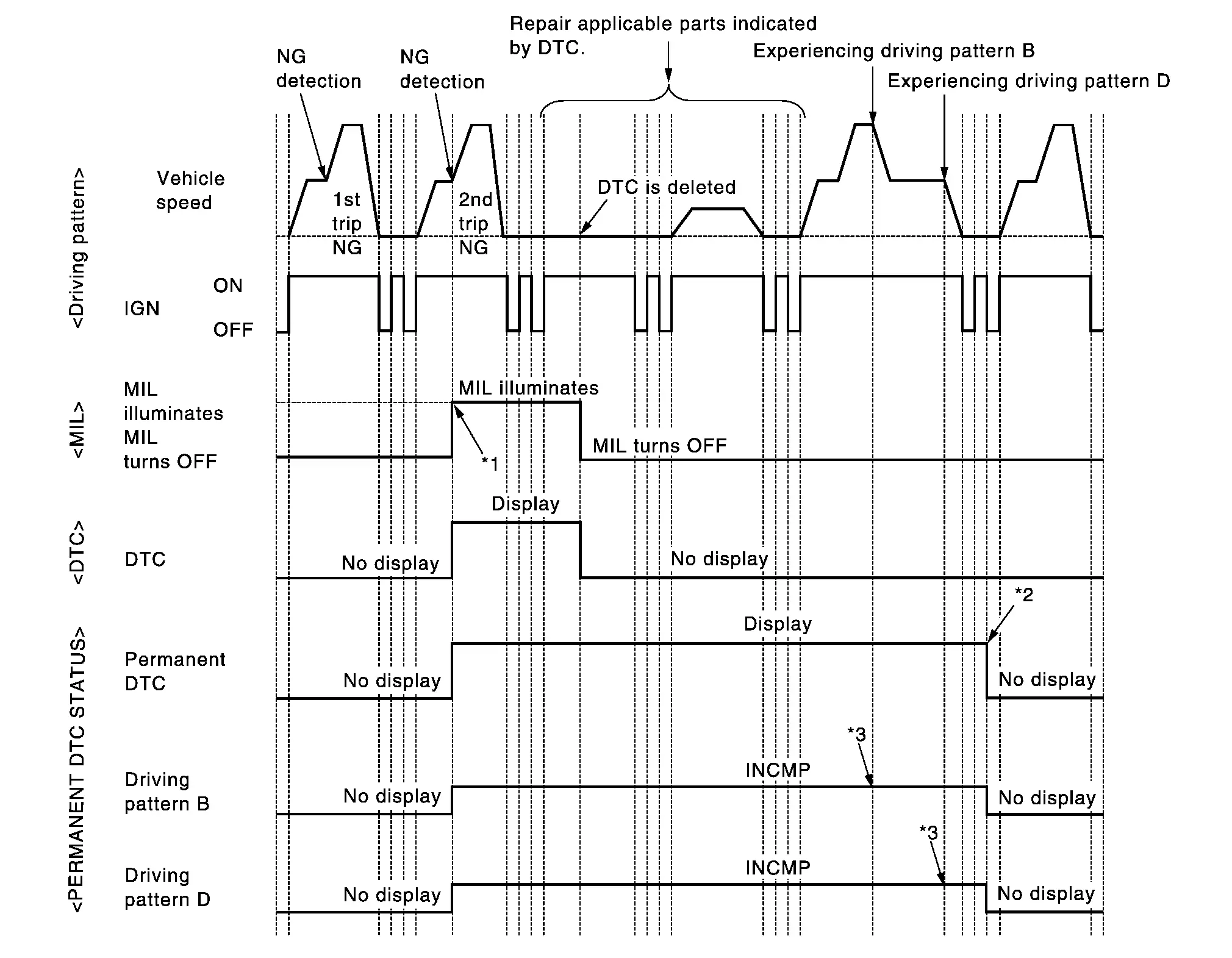

| *1: | When the same malfunction is detected in two consecutive trips, MIL will illuminate. | *2: | After experiencing driving pattern B and D, permanent DTC is erased. | *3: | Indication does not change unless the ignition switch is turned from ON to OFF twice even after experiencing driving pattern B or D. |
NOTE:
Drive the vehicle according to only driving patterns indicating “INCMP” in driving patterns B and D on the “PERMANENT DTC STATUS” screen.
CHECK DTC
Check DTC.
Is any DTC detected?
YES>>Repair malfunction(s) and erase DTC.
NO>>GO TO 2 .
CHECK PERMANENT DTC
With CONSULT
Ignition switch OFF and wait at least 10 seconds.
Ignition switch ON.
Ignition switch OFF and wait at least 10 seconds.
Ignition switch ON.
On CONSULT screen, select “SRT & P-DTC”>>“Permanent DTC Status”.
With GST
Ignition switch OFF and wait at least 10 seconds.
Ignition switch ON.
Ignition switch OFF and wait at least 10 seconds.
Ignition switch ON.
Select Service $0A with GST.
Is any permanent DTC detected?
YES>>GO TO 3 .
NO>>END
DRIVE DRIVING PATTERN B
CAUTION:
Always drive at a safe speed.
Never erase self-diagnosis results.
If self-diagnosis results are erased during the trip of driving pattern B or D, the counter of driving pattern B and D is reset.
With CONSULT
Start engine and warm it up to normal operating temperature.
Use “PERMANENT DTC WORK SUPPORT” mode with CONSULT to drive the vehicle according to driving pattern B. Refer to CONSULT Function. , Refer to Driving Pattern.
With GST
Start engine and warm it up to normal operating temperature.
Drive the vehicle according to driving pattern B. Refer to Driving Pattern.
GO TO 4 .
CHECK PERMANENT DTC
With CONSULT
Ignition switch OFF and wait at least 10 seconds.
Ignition switch ON.
Ignition switch OFF and wait at least 10 seconds.
Ignition switch ON.
On CONSULT screen, select “SRT & P-DTC”>>“Permanent DTC Status”.
With GST
Ignition switch OFF and wait at least 10 seconds.
Ignition switch ON.
Ignition switch OFF and wait at least 10 seconds.
Ignition switch ON.
Select Service $0A with GST.
Is any permanent DTC detected?
YES>>GO TO 5 .
NO>>END
DRIVE DRIVING PATTERN D
CAUTION:
Always drive at a safe speed.
Never erase self-diagnosis results.
If self-diagnosis results are erased during the trip of driving pattern B or D, the counter of driving pattern B and D is reset.
Drive the vehicle according to driving pattern D. Refer to Driving Pattern.
GO TO 6 .
CHECK PERMANENT DTC
With CONSULT
Ignition switch OFF and wait at least 10 seconds.
Ignition switch ON.
Ignition switch OFF and wait at least 10 seconds.
Ignition switch ON.
On CONSULT screen, select “SRT & P-DTC”>>“Permanent DTC Status”.
With GST
Ignition switch OFF and wait at least 10 seconds.
Ignition switch ON.
Ignition switch OFF and wait at least 10 seconds.
Ignition switch ON.
Select Service $0A with GST.
Is any permanent DTC detected?
YES>>GO TO 1 .
NO>>END
Work Procedure (Group A)
*1: When the same malfunction is detected in two consecutive trips, MIL will illuminate.
CHECK DTC
Check DTC.
Is any DTC detected?
YES>>
Repair malfunction(s) and erase DTC.
NO>>
GO ...
