Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation

Nissan Armada 2025-2026 Service and Repair Manual / Body Exterior, Doors, Roof & Vehicle Security / Exterior — Removal and Installation / Rear Side Spoiler / Removal and Installation

REMOVAL

Fully open back door.

Remove rear combination lamp cover. Refer to Removal and Installation.

Remove rear side spoiler fixing bolts .

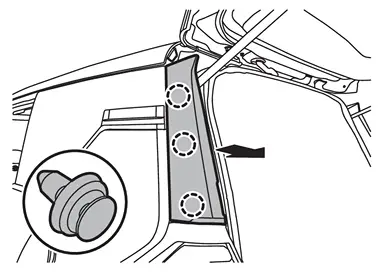

Disengage rear side spoiler fixing clips as shown in the figure, and then remove rear side spoiler.

: Clip

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

If rear side spoiler is reused, replace clip on the upper part of the rear side spoiler with a new one.

Always replace double-sided tape with a new one, if rear side spoiler is reused.

Degrease rear side spoiler mounting surface of body side panel.

Paint grain or dust on mounting surface of rear side spoiler may spoil exterior appearance if it remains. Clean the mounting surface and check that no paint grain or dust remains, before starting the operation.

Never wash the vehicle within 24 hours after installing so as to keep adhesive.

Exploded View

Rear side spoiler Double-sided tape [t: 2.5 mm (0.098 in)] : Clip : Always replace after every disassembly. ...
