Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Make a clearance by remove rear end portion of front center console rear finisher assembly. Refer to Exploded View.

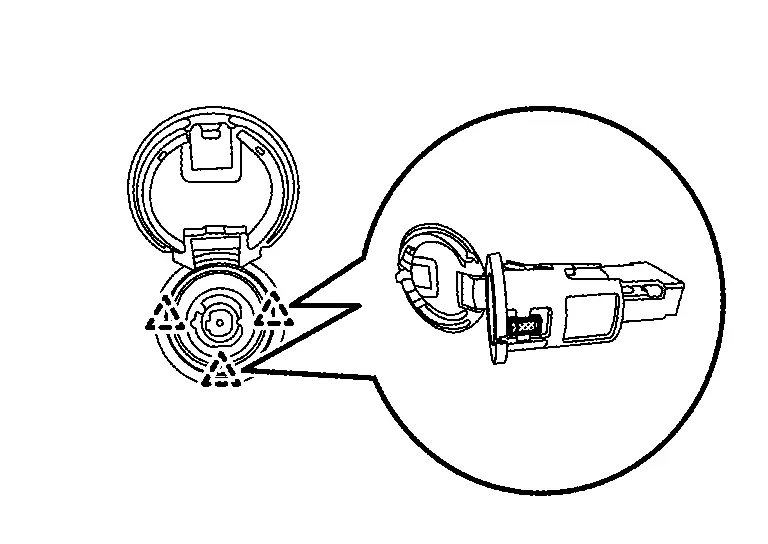

Press the power socket fixing pawls from the back of the front center console rear finisher assembly to extrude the power socket.
 | : Pawl |
Disconnect harness connector, and then remove the power socket.
INSTALLATION
Note the following, and then install in the reverse order of removal.
CAUTION:

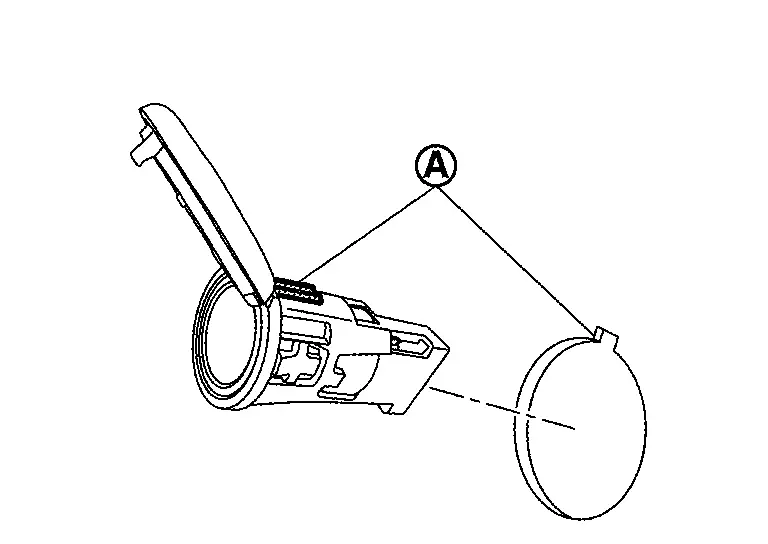

Align the cut out
of power socket and front center console rear finisher assembly.
| : Cut out |
