Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove the front center console cup holder assembly. Refer to Removal and Installation.
Remove the center console pocket mat. Refer to Exploded View.

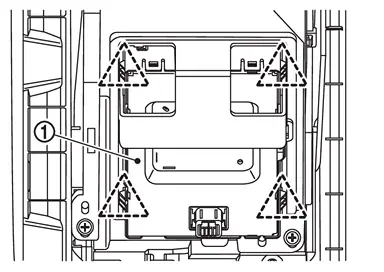

Press the wireless charger unit pawl from the back of the front center console cup holder assembly to remove the wireless charger unit
.
 | : Pawl |
INSTALLATION
Note the following, and install in the reverse order of removal.
Align the cut outs of wireless charger unit and front center console cup holder assembly
.
 | : Cut out |
