Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Fully open hood assembly.

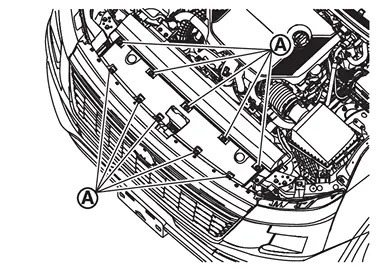

Remove fixing clips
.

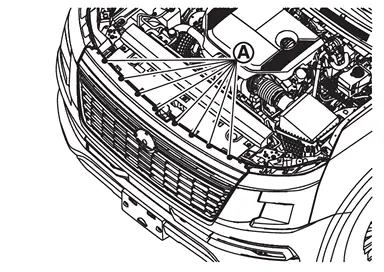

Remove fixing clips .

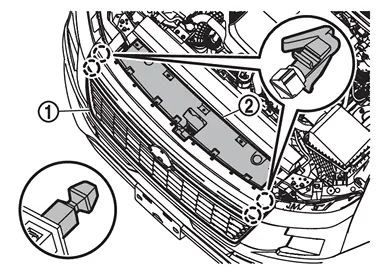

Disengage front grille
fixing clips to secure workspace, and then remove front grille upper
.
 | : Clip |

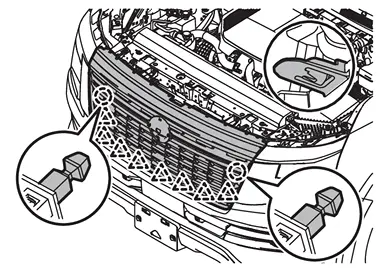

Disengage fixing clips and pawls, and then remove front grille.
| : Clip |
 | : Pawl |
Remove the following parts after removing front grille.
Front camera. Refer to Removal and Installation.
Front emblem
Grommets
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
Perform front camera image calibration. Refer to Work Procedure.
When installing front grille, check that pawls and clips are securely fitted in holes, and then press them in.
Exploded View
Front bumper fascia Grommet Front grille upper Front grille Front emblem Front camera : Clip : Pawl : Indicate that the part is connected at points with same symbol in actual vehicle. ...
