Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL

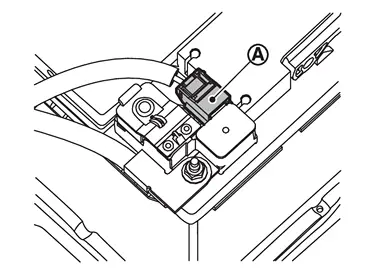

Disconnect the battery current sensor connector
.

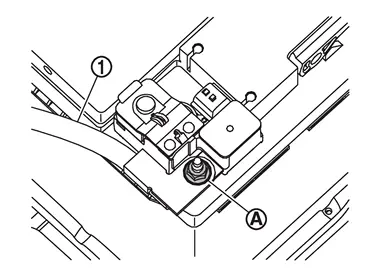

Remove negative cable mounting nut , and then remove the negative cable
.
Loosen battery current sensor mounting nut , and then remove the battery current sensor .
INSTALLATION
Install in the reverse order of removal.
Exploded View
Without ProPILOT ASSIST 2.1
Battery fix frame Battery cover Negative cable Battery current sensor 12V battery Battery fix rod Battery fix rod clip Battery tray Battery positive terminal Bat ...
Earth
...
