Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove the back door finisher. Refer to Removal and Installation.

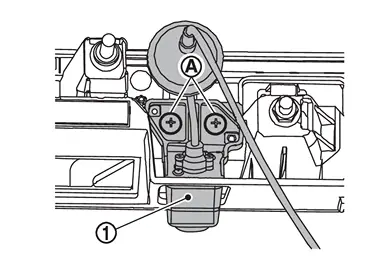

Remove the rear camera mounting screws
, then remove the rear camera
.
INSTALLATION
Install in the reverse order of removal.
Perform parameter writing. (With ProPILOT Assist 2.1) Refer to Work Procedure.
Perform camera image calibration. Refer to Work Procedure.
CAUTION:
Rear Camera
...
Side Camera
...
