Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
CAUTION:
Before replacing driving video recorder control module, perform “ADDITIONAL SERVICE WHEN REPLACING DRIVING VIDEO RECORDER CONTROL MODULE”. For details, refer to Work Procedure.
Before replacing the driving video recorder control module, the customer should be informed if the files in the driving video recorder control module need to be backed up.
Remove the Front center console cover. Refer to Removal and Installation.

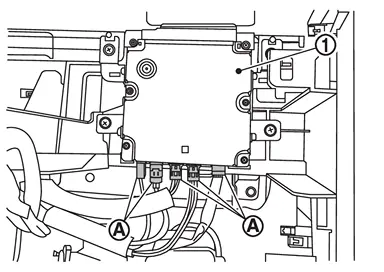

Disconnect connectors
from driving video recorder control module
.

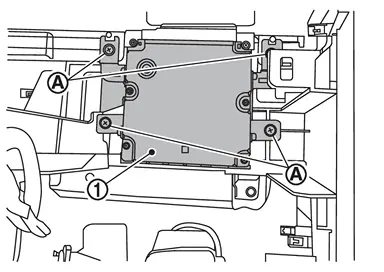

Remove the mounting screws , and remove driving video recorder control module .
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:
After installation, perform “ADDITIONAL SERVICE WHEN REPLACING DRIVING VIDEO RECORDER CONTROL MODULE”. For details, refer to Work Procedure.
