Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Using a suitable tool, release clips
, and remove cover
.
Disconnect inside camera (driving video recorder) harness connector.

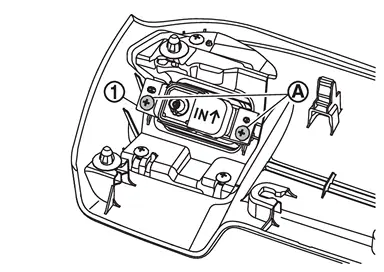

Remove mounting screws
, and remove inside camera (driving video recorder) from inside camera bracket.

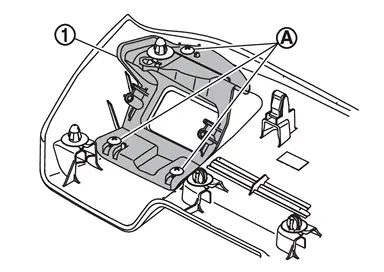

Remove mounting screws , and remove inside camera bracket from cover.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Do not touch or shock the inside camera (driving video recorder) lens area or drop the inside camera (driving video recorder).
Make sure that the inside camera (driving video recorder) harness is not twisted after installation.
Exploded View
Front camera (driving video recorder) Bracket Inside camera (driving video recorder) Inside camera bracket Cover ...
