Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove luggage side lower finisher LH. Refer to Removal and Installation.
Remove front camera unit. Refer to Removal and Installation.

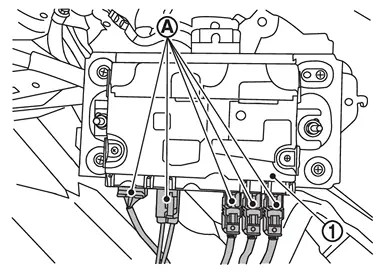

Disconnect HD map module harness connectors
from HD map module
.

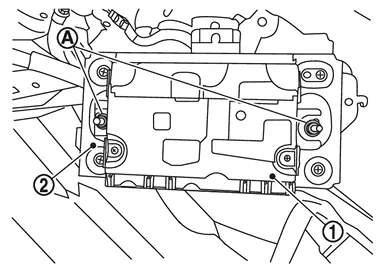

Remove mounting nuts , and remove HD map module from front camera unit
.
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:
Be sure to perform “ADDITIONAL SERVICE WHEN REPLACING HD MAP MODULE” when replacing HD map module. Refer to Work Procedure.
Exploded View
Front camera unit HD map module : N·m (kg-m, in-lb) ...
Antenna Feeder
...
