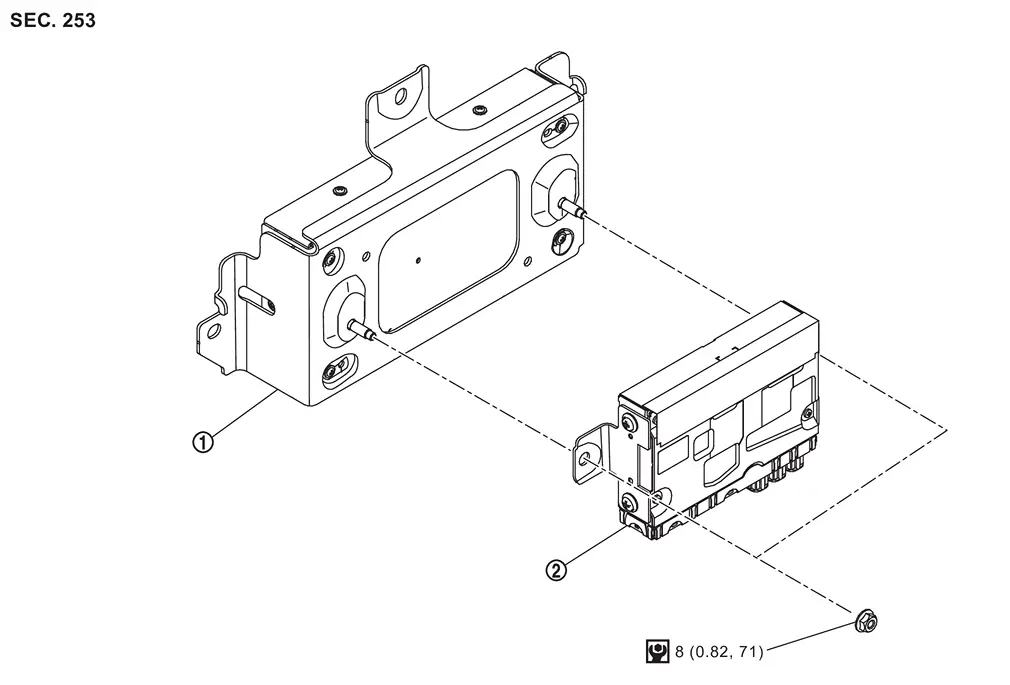

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Front camera unit |  | HD map module | ||
 | : N·m (kg-m, in-lb) | ||||
Hd Map Module
...
Removal and Installation
REMOVAL
Remove luggage side lower finisher LH. Refer to Removal and Installation.
Remove front camera unit. Refer to Removal and Installation.
Disconnect HD map module harness connectors from HD map ...
