Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
CAUTION:
When replacing chassis control module, configuration of chassis control module is required. Refer to Description.
Without Dynamic Digital Suspension And Electronic Air Suspension
Remove the glove box. Refer to Removal and Installation.

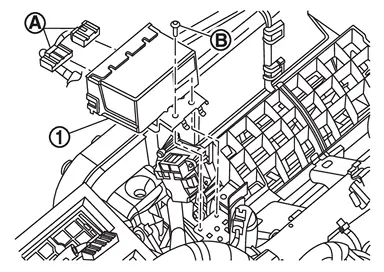

Disconnect the chassis control module harness connector
, and remove mounting screws
and chassis control module
.

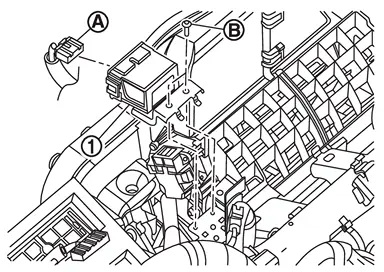

WITHOUT ProPILOT Assist 2.1

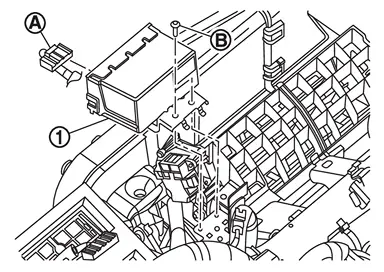

WITH ProPILOT Assist 2.1
Remove the chassis control module from bracket
.
WITHOUT ProPILOT Assist 2.1
WITH ProPILOT Assist 2.1
With Dynamic Digital Suspension And Electronic Air Suspension
Remove the glove box. Refer to Removal and Installation.
Disconnect the chassis control module harness connectors , and remove mounting screws and chassis control module .
Remove the chassis control module from bracket .
INSTALLATION
Note the following, install in the reverse order of removal.
When replacing the chassis control module, be sure to perform the configuration of chassis control module. Refer to Description.
Exploded View
WITHOUT DYNAMIC DIGITAL SUSPENSION AND ELECTRONIC AIR SUSPENSION
Without ProPILOT ASSIST 2.1
Chassis control module Bracket
With ProPILOT ASSIST 2.1
Chassis control module Bracket
WITH DYNAMI ...
