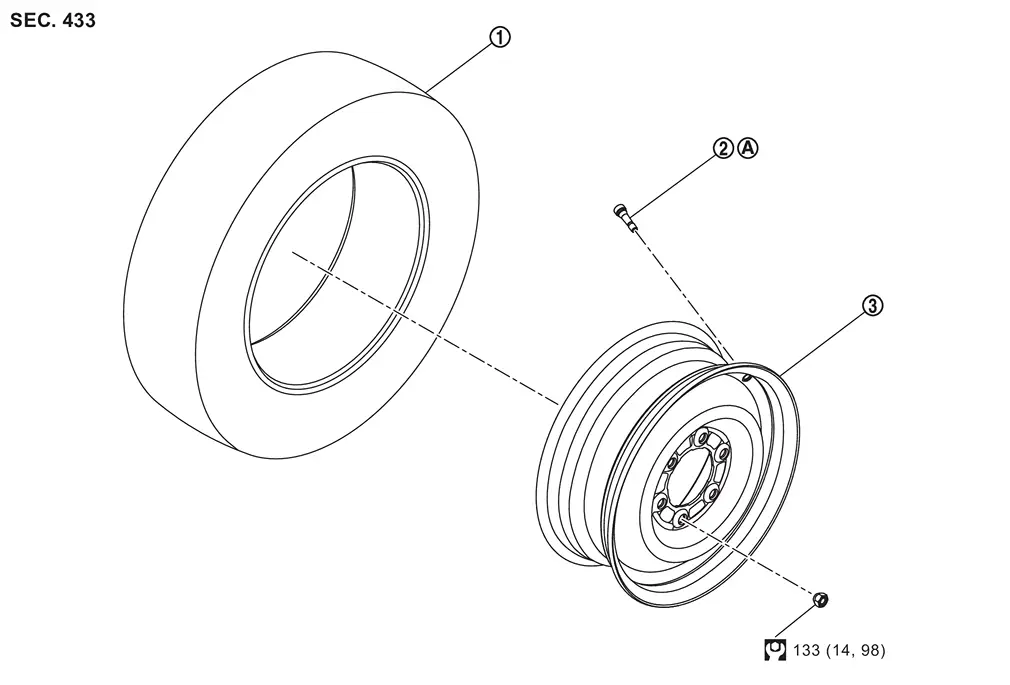

Nissan Armada 2025-2026 Service and Repair Manual: ROAD WHEEL TIRE : Exploded View
 | Tire |  | Air valve |  | Wheel |
 | : For non-reusable parts, refer to the TPMS configuration diagram. Refer to TIRE PRESSURE SENSOR : Exploded View. | ||||
 : N·m (kg-m, ft-lb) | |||||
Road Wheel Tire
...
ROAD WHEEL TIRE : Removal & Installation
WARNING:
REMOVAL
Remove wheel nuts with power tool (commercial service tool).
Remove tire assembly.
INSTALLATION
Note the following, install in the reverse order of removal.
When replacing or rotating ...
