Nissan Armada 2025-2026 Service and Repair Manual: SONAR SENSOR (FRONT) : Exploded View

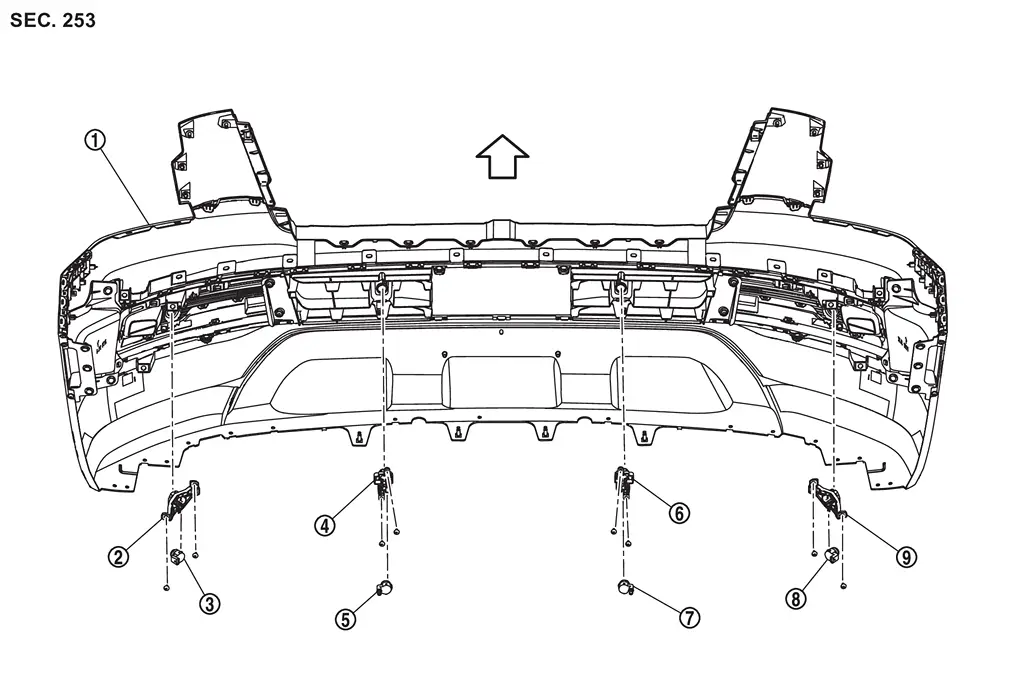

CITY MODELS
 | Front bumper fascia |  | Corner sensor front LH holder |  | Corner sensor front LH |
 | Center sensor front LH holder |  | Center sensor front LH |  | Center sensor front RH holder |
 | Center sensor front RH |  | Corner sensor front RH |  | Corner sensor front RH holder |
 | Vehicle front | ||||

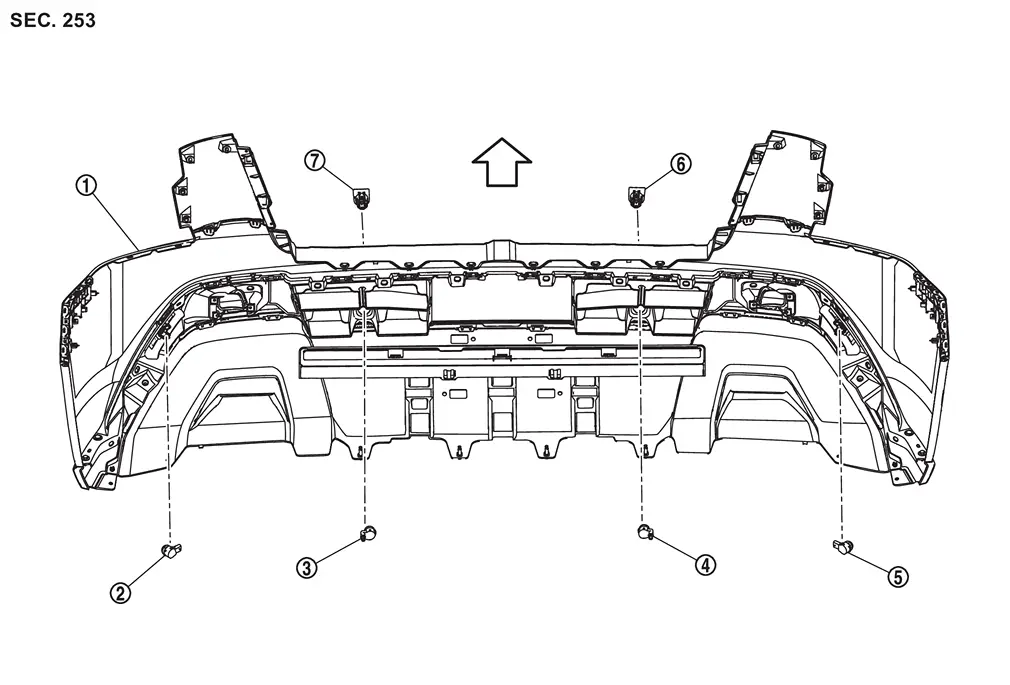

OFF ROAD MODELS (WITH WELDING TYPE)
| Front bumper fascia | | Corner sensor front LH | | Center sensor front LH |
| Center sensor front RH | | Corner sensor front RH | | Center sensor front RH finisher |
| Center sensor front LH finisher | ||||
| Vehicle front | ||||

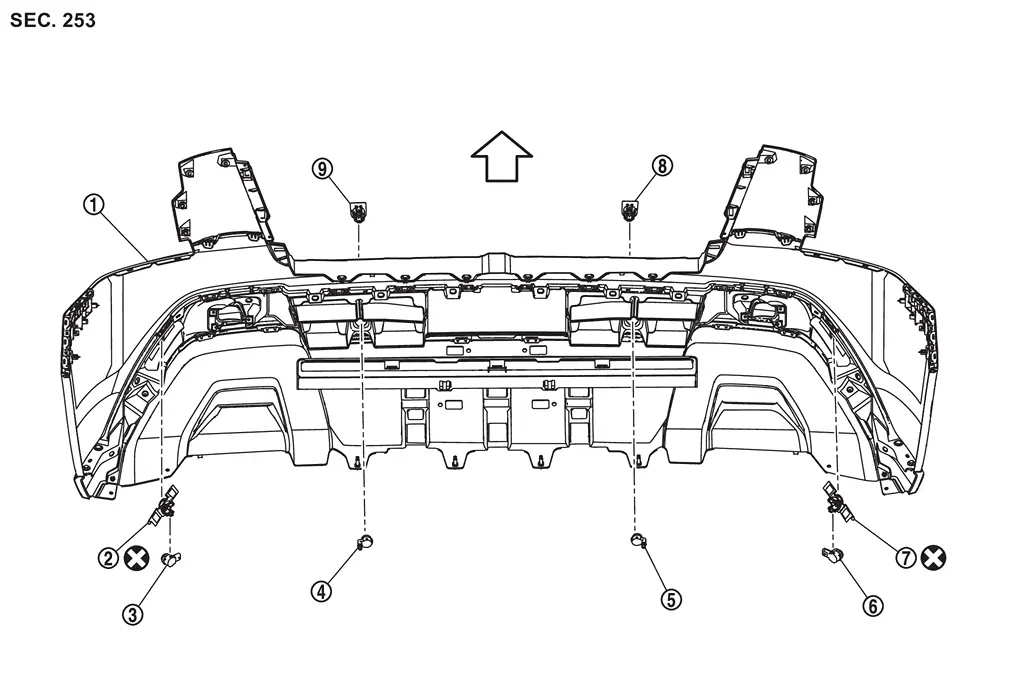

OFF ROAD MODELS (WITHOUT WELDING TYPE)
| Front bumper fascia | | Corner sensor front LH holder | | Corner sensor front LH |
| Center sensor front LH | | Center sensor front RH | | Corner sensor front RH |
| Corner sensor front RH holder | | Center sensor front RH finisher | | Center sensor front LH finisher |
 | :Always replace after every disassembly. | ||||
| Vehicle front | ||||
SONAR SENSOR (FRONT) : Removal & Installation
WARNING:
REMOVAL
Center sensor
NOTE:
When removing the sensor holder, remove the front bumper. Refer to Removal and Installation.
Disconnect sonar sensor harness connector , follow the procedure below ...
