Nissan Armada 2025-2026 Service and Repair Manual: Camshaft
CAMSHAFT
Unit: mm (in)
| Items | Standard | Limit | ||||
|---|---|---|---|---|---|---|
| Camshaft journal oil clearance | No. 1 | 0.045 - 0.086 (0.0018 - 0.0034) | 0.150 (0.0059) | |||
| No. 2, 3, 4 | 0.035 - 0.076 (0.0014 - 0.0030) | |||||
| Camshaft bracket inner diameter | No. 1 | 26.000 - 26.021 (1.0236 - 1.0244) | — | |||
| No. 2, 3, 4 | 23.500 - 23.521 (0.9252 - 0.9260) | — | ||||
| Camshaft journal diameter | No. 1 | 25.935 - 25.955 (1.0211 - 1.0218) | — | |||
| No. 2, 3, 4 | 23.445 - 23.465 (0.9230 - 0.9238) | — | ||||
| Camshaft end play | 0.115 - 0.188 (0.0045 - 0.0074) | 0.24 (0.0094) | ||||
| Camshaft cam height “A” | Intake | 45.265 - 45.455 (1.7821 - 1.7896) | 0.2 (0.008)*1 | |||
| Exhaust | 43.675 - 43.865 (1.7195 - 1.7269) | |||||
| Pump | 57.0 - 57.4 (2.244 - 2.260) | |||||
| Camshaft runout [TIR*2] | Less than 0.02 (0.0008) | 0.05 (0.0020) | ||||
| Camshaft sprocket runout [TIR*2] | — | 0.15 (0.0059) | ||||
| ||||||
*1: Cam wear limit
*2: Total indicator reading
VALVE LIFTER
Unit: mm (in)
| Items | Standard | |
|---|---|---|
| Valve lifter outer diameter | Intake | 33.980 - 33.990 (1.3378 - 1.3382) |
| Exhaust | 29.977 - 29.987 (1.1802 - 1.1806) | |
| Valve lifter hole diameter | Intake | 34.000 - 34.016 (1.3386 - 1.3392) |
| Exhaust | 29.997 - 30.013 (1.1810 - 1.1816) | |
| Valve lifter clearance | 0.010 - 0.036 (0.0004 - 0.0014) | |
VALVE CLEARANCE
Unit: mm (in)
| Items | Cold | Hot* (reference data) |
|---|---|---|
| Intake | 0.26 - 0.34 (0.0103 - 0.0133) | 0.304 - 0.416 (0.0120 - 0.0163) |
| Exhaust | 0.28 - 0.36 (0.0111 - 0.0141) | 0.308 - 0.432 (0.0122 - 0.0170) |
*: Approximately 80°C (176°F)

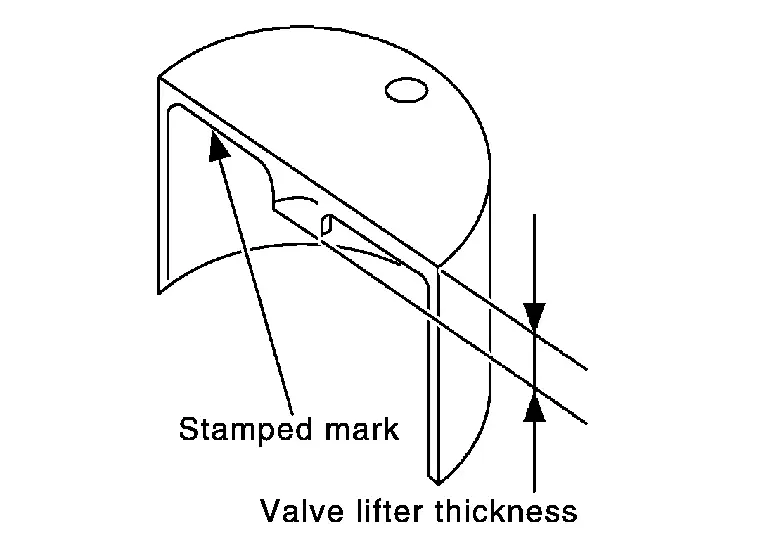

AVAILABLE VALVE LIFTER
Unit: mm (in)
| Identification mark | Thickness | |
|---|---|---|
| Intake | Exhaust | Thickness |
| 300+ | 300- | 3.00 (0.1181) |
| 302+ | 302- | 3.02 (0.1189) |
| 304+ | 304- | 3.04 (0.1197) |
| 306+ | 306- | 3.06 (0.1205) |
| 308+ | 308- | 3.08 (0.1213) |
| 310+ | 310- | 3.10 (0.1220) |
| 312+ | 312- | 3.12 (0.1228) |
| 314+ | 314- | 3.14 (0.1236) |
| 316+ | 316- | 3.16 (0.1244) |
| 318+ | 318- | 3.18 (0.1252) |
| 320+ | 320- | 3.20 (0.1260) |
| 322+ | 322- | 3.22 (0.1268) |
| 324+ | 324- | 3.24 (0.1276) |
| 326+ | 326- | 3.26 (0.1283) |
| 328+ | 328- | 3.28 (0.1291) |
| 330+ | 330- | 3.30 (0.1299) |
| 332+ | 332- | 3.32 (0.1307) |
| 334+ | 334- | 3.34 (0.1315) |
| 336+ | 336- | 3.36 (0.1323) |
| 338+ | 338- | 3.38 (0.1331) |
| 340+ | 340- | 3.40 (0.1339) |
| 342+ | 342- | 3.42 (0.1346) |
| 344+ | 344- | 3.44 (0.1354) |
| 346+ | 346- | 3.46 (0.1362) |
| 348+ | 348- | 3.48 (0.1370) |
| 350+ | 350- | 3.50 (0.1378) |
| ||
