CYLINDER HEAD

Unit: mm (in)

Items	Standard	Limit
Head surface distortion	Less than 0.03 (0.0012)	0.1 (0.004)

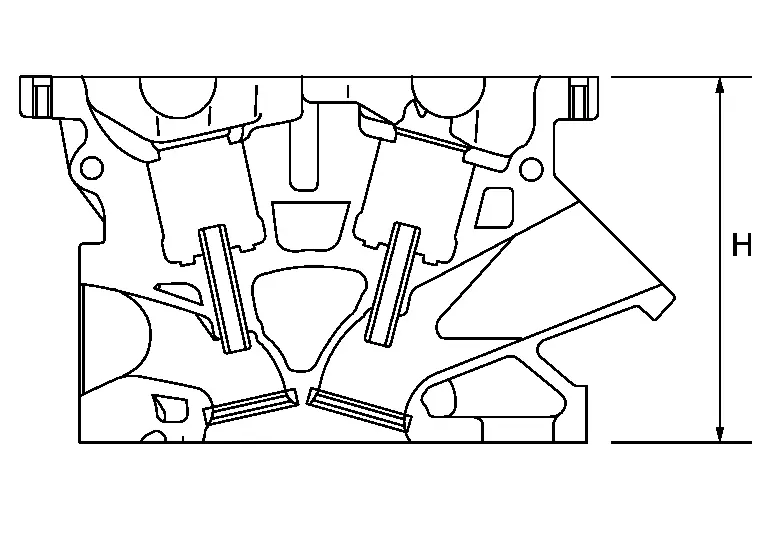

Normal cylinder head height “H”	126.4 (4.98)	—

VALVE DIMENSIONS

Unit: mm (in)


Valve head diameter “D”	Intake	33.2 - 33.5 (1.307 - 1.319)
	Exhaust	28.32 - 28.62 (1.1150 - 1.1267)
Valve length “L”	Intake	101.05 (3.9783)
	Exhaust	97.48 (3.8378)
Valve stem diameter “d”	Intake	5.465 - 5.480 (0.2152 - 0.2157)
	Exhaust	5.455 - 5.470 (0.2148 - 0.2154)
Valve seat angle “α”	Intake	45°15′ - 45°45′
	Exhaust
Valve margin “T”	Intake	1.1 (0.043)
	Exhaust	1.3 (0.051)
Valve margin “T” limit		0.5 (0.020)
Valve stem end surface grinding limit		0.2 (0.008)

VALVE GUIDE

Unit: mm (in)


Items		Standard	Oversize (Service) [0.2 (0.008)]
Valve guide	Outer diameter	9.523 - 9.534 (0.3749 - 0.3754)	9.723 - 9.734 (0.3828 - 0.3832)
Valve guide	Inner diameter (Finished size)	5.500 - 5.518 (0.2165 - 0.2172)
Cylinder head valve guide hole diameter		9.475 - 9.496 (0.3730 - 0.3739)	9.675 - 9.696 (0.3809 - 0.3817)
Interference fit of valve guide		0.027 - 0.059 (0.0011 - 0.0023)

Unit: mm (in)

Items		Standard	Limit
Valve guide clearance	Intake	0.020 - 0.053 (0.0008 - 0.0021)	0.08 (0.0031)
Valve guide clearance	Exhaust	0.030 - 0.063 (0.0012 - 0.0025)	0.09 (0.0035)

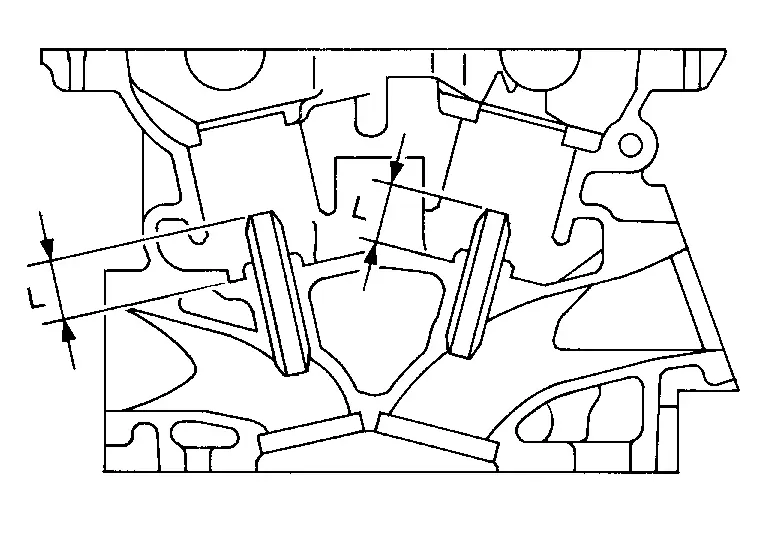

Projection length “L”		12.6 - 12.8 (0.496 - 0.504)

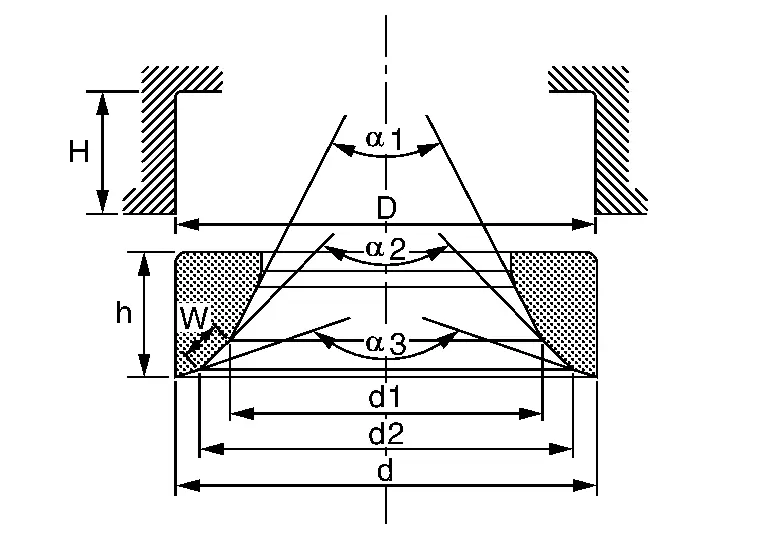

VALVE SEAT

Unit: mm (in)


Items		Standard	Oversize (Service) [0.5 (0.02)]
Cylinder head seat recess diameter “D”	Intake	34.100 - 34.116 (1.3425 - 1.3431)	34.600 - 34.616 (1.3622 - 1.3628)
Cylinder head seat recess diameter “D”	Exhaust	28.600 - 28.616 (1.1260 - 1.1266)	29.100 - 29.116 (1.1457 - 1.1463)
Valve seat outer diameter “d”	Intake	34.197 - 34.213 (1.3463 - 1.3470)	34.697 - 34.713 (1.3660 - 1.3667)
Valve seat outer diameter “d”	Exhaust	28.680 - 28.696 (1.1291 - 1.1298)	29.180 - 29.196 (1.1488 - 1.1494)
Valve seat interference fit	Intake	0.081 - 0.113 (0.0032 - 0.0044)
Valve seat interference fit	Exhaust	0.064 - 0.096 (0.0025 - 0.0038)
Diameter “d1”*¹	Intake	31.2 (1.228)
Diameter “d1”*¹	Exhaust	25.8 (1.016)
Diameter “d2”*²	Intake	32.5 - 33.0 (1.280 - 1.299)
Diameter “d2”*²	Exhaust	27.4 - 27.9 (1.079 - 1.098)
Angle “α1”	Intake	70°
Angle “α1”	Exhaust	60°
Angle “α2”	Intake	88°45′ - 90°15′
Angle “α2”	Exhaust	88°45′ - 90°15′
Angle “α3”	Intake	120°
Angle “α3”	Exhaust	120°
Contacting width “W”*³	Intake	1.0 - 1.4 (0.039 - 0.055)
Contacting width “W”*³	Exhaust	1.2 - 1.6 (0.047 - 0.063)
Height “h”	Intake	4.7 (0.185)	4.9 (0.193)
Height “h”	Exhaust	5.2 (0.205)	5.4 (0.213)
Depth “H”	Intake	5.3 (0.209)
Depth “H”	Exhaust	6.0 (0.236)

*¹: Diameter made by intersection point of conic angles “α1” and “α2”

*²: Diameter made by intersection point of conic angles “α2” and “α3”

*³: Machining data

VALVE SPRING

Items		Standard
Items		Intake	Exhaust
Free height		48.51 mm (1.9098 in)	61.76 mm (2.4315 in)
Pressure	Installation	166 - 188 N (16.94 - 19.17 kg, 37.31 - 42.26 lb)	315 - 355 N (32.13 - 36.21 kg, 70.82 - 79.80 lb)
Pressure	Valve open	384 - 432 N (39.17 - 44.06 kg, 86.32 - 97.11 lb)	473 - 533 N (48.25 - 54.36 kg, 106.33 - 119.81 lb)
Identification color		White	Yellow

Items		Limit
Items		Intake	Exhaust
Out-of-square		1.7 mm (0.067 in)	2.2 mm (0.087 in)
