Nissan Armada 2025-2026 Service and Repair Manual: Commercial Service Tools
Tool name (TechMate No.) | Description | |
|---|---|---|
| Pressure gauge |
| Checking fuel pressure |
| Quick connector release |
| Removing fuel tube quick connectors in engine room (Available in SEC. 164 of PARTS CATALOG: Parts No. 16441 6N210) |
Leak detector i.e.: (NI-41416) |
| Locates the EVAP leak |
EVAP service port adapter i.e.: (NI-41413-OBD) |
| Applies positive pressure through EVAP service port |
| EVAP service port |
| Connects pressure pump to EVAP line (Parts No. 14939 3S500)
This tool is used if the vacuum delay valve does not have EVAP service port. |

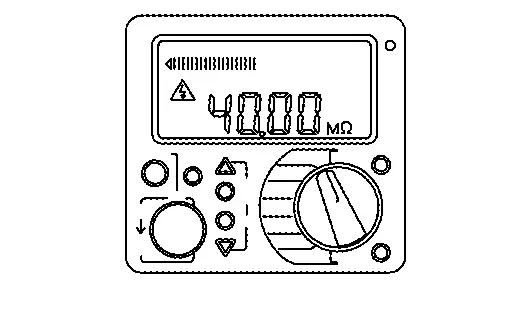

| Insulation resistance tester (Multi tester) |
| Measuring insulation resistance, voltage, and resistance |
NOTE:
Special Service Tools
NOTE:
Tool number
(TechMate No.)
Tool name Description KV10120000
(—)
Fuel tube adapter
Measuring fuel pressure ...
