Nissan Armada 2025-2026 Service and Repair Manual: Inspection and Adjustment
FRONT WASHER NOZZLE SPRAY POSITION
Inspection
NOTE:

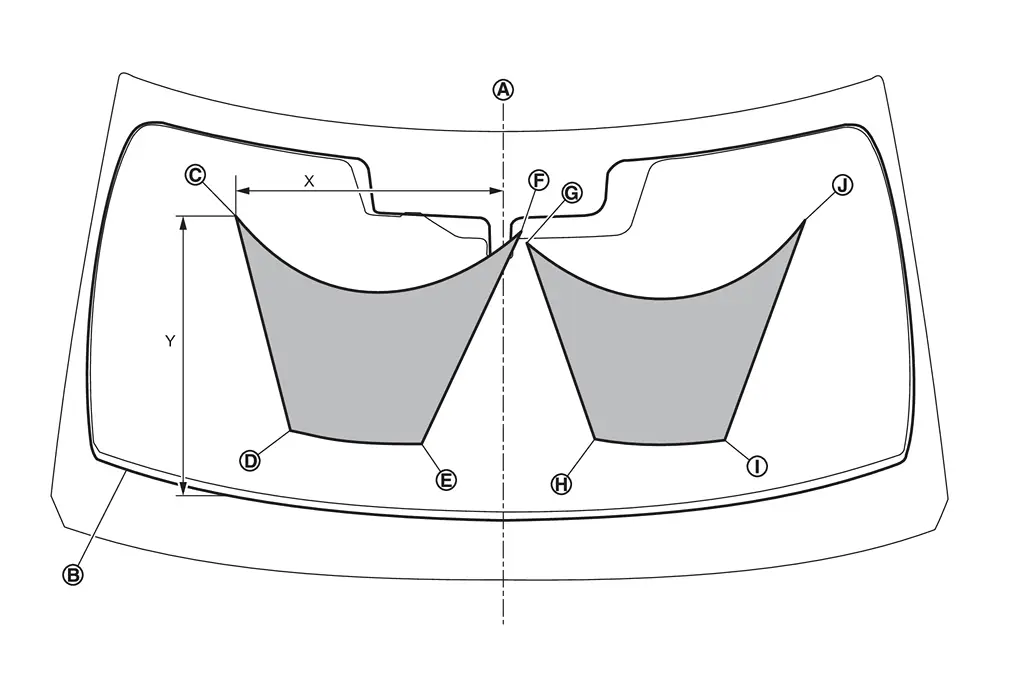

Refer to the figure below for front washer nozzle spray position.
 | Center |  | Black printed frame line | ||
 | : Spray area |
Unit: mm (in)
 |  |  |  |  |  |  |  | |
X (from center) | 493.7 (19.44) | 387.7 (15.26) | 146.1 (5.75) | 43.6 (1.72) | 46.5 (1.83) | 177.0 (6.97) | 417.7 (16.44) | 570.8 (22.47) |
Y (from black printed frame line) | 530.2 (20.87) | 140.2 (5.52) | 138.1 (5.44) | 547.0 (21.54) | 519.6 (20.46) | 146.5 (5.77) | 122.9 (4.84) | 512.3 (20.17) |
Adjustment
CAUTION:
Front washer nozzle cannot be adjusted, so if it is out of spray position, replace front washer nozzle. Refer to Removal and Installation.
Removal and Installation
REMOVAL
CAUTION:
When washer tube is disconnected/removed, washer fluid may come out so prepare a container to receive washer fluid and never allow washer fluid to be sprinkled.
Remove cowl top cover. ...
