Nissan Armada 2025-2026 Service and Repair Manual: Damage Analysis Procedure
Damage Diagnosis Flow

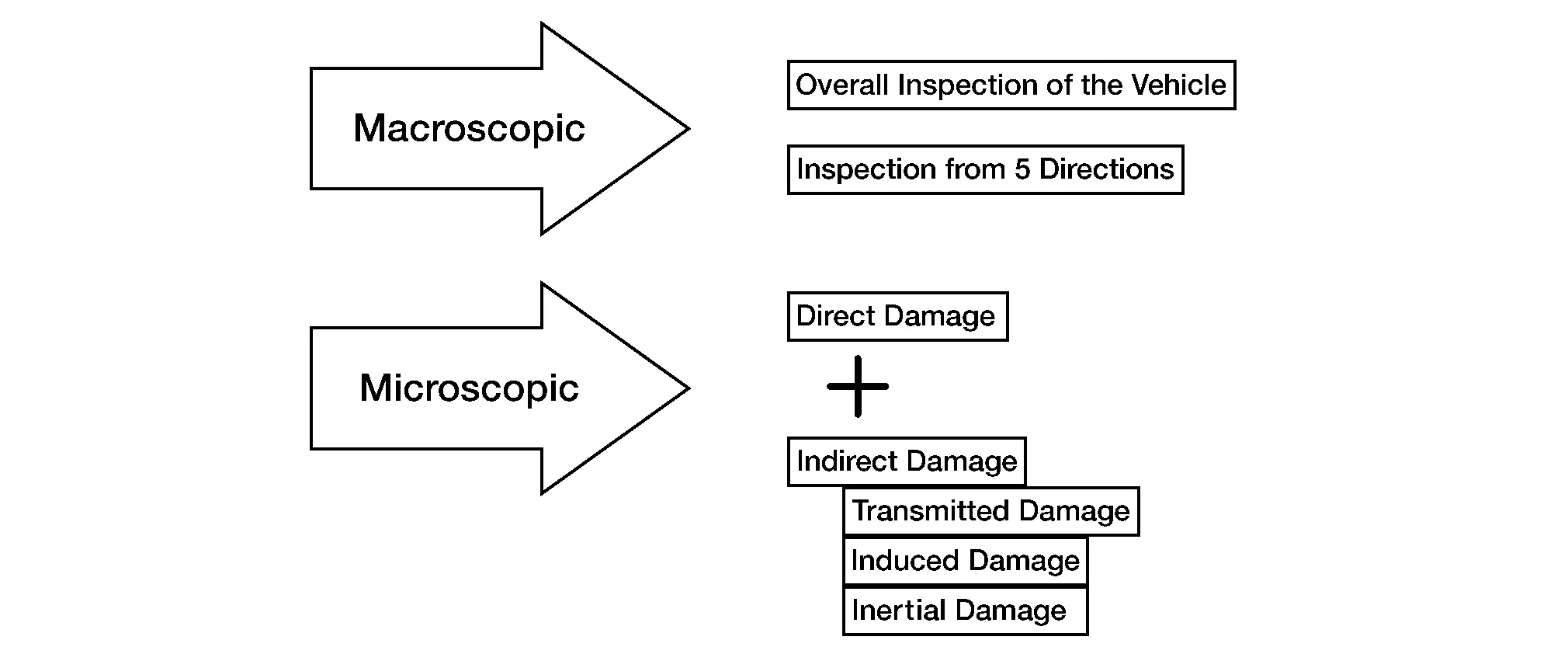

The method to accurately analysis damage includes macroscopic observations and microscopic observations and uses the following procedure to comprehend the "overall picture of the damage".
Distortions on Structures
We will look at the different forces acting on part deformations according to the direction the force is applied considering the three elements of force. We will be looking at the basics with a hammer ...
Damage Diagnosis
The damage must be diagnosed using the following criteria.
Location of damage
Range of affected area
Degree of damage
These three points relate directly to the quality, efficiency and cost of damage ...
