Nissan Armada 2025-2026 Service and Repair Manual: DEFINITIONS OF BANK NAMES
In this manual, each bank name is defined as follows:
: Bank 1 (The conventional right bank)
: Bank 2 (The conventional left bank)

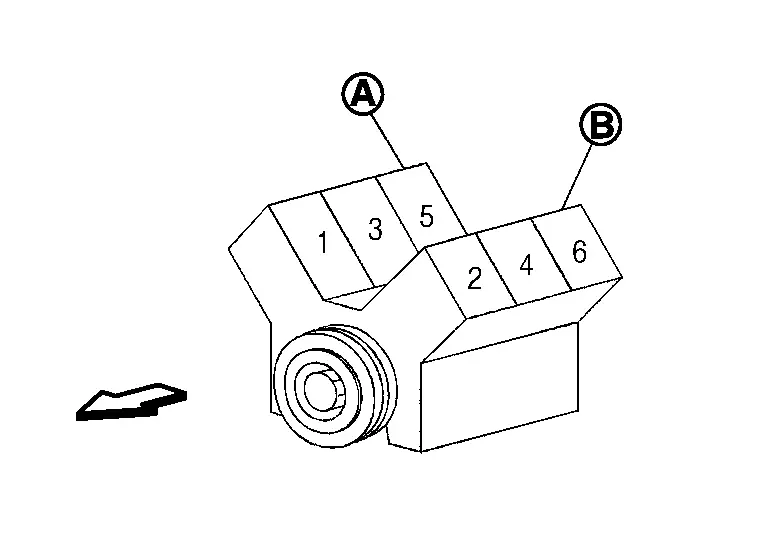

: Engine front For cylinder numbers and bank layout, refer to the illustration.
Bank 1 : The bank side including cylinder No. 1
(odd-numbered cylinder side)Bank 2 : The other bank side of the above
(even-numbered cylinder side)
PARTS REQUIRING ANGLE TIGHTENING
Use the angle wrench [SST: KV10112100 (BT-8653-A)] for the final tightening of the following engine parts:
Camshaft sprocket (INT) bolt
Cylinder head bolts
Main bearing cap bolts
Connecting rod cap b ...
Precaution for when Jacking and Lifting Up the Vehicle with Electronic Air Suspension
System
WARNING:
CAUTION:
OPERATION PROCEDURE
Jacking up or lift up using the following steps.
Start engine.
Turn OFF the electronic air suspension function. Refer to Operation.
Stop engine.
Jacking up or lif ...
