Nissan Armada 2025-2026 Service and Repair Manual: Work Flow

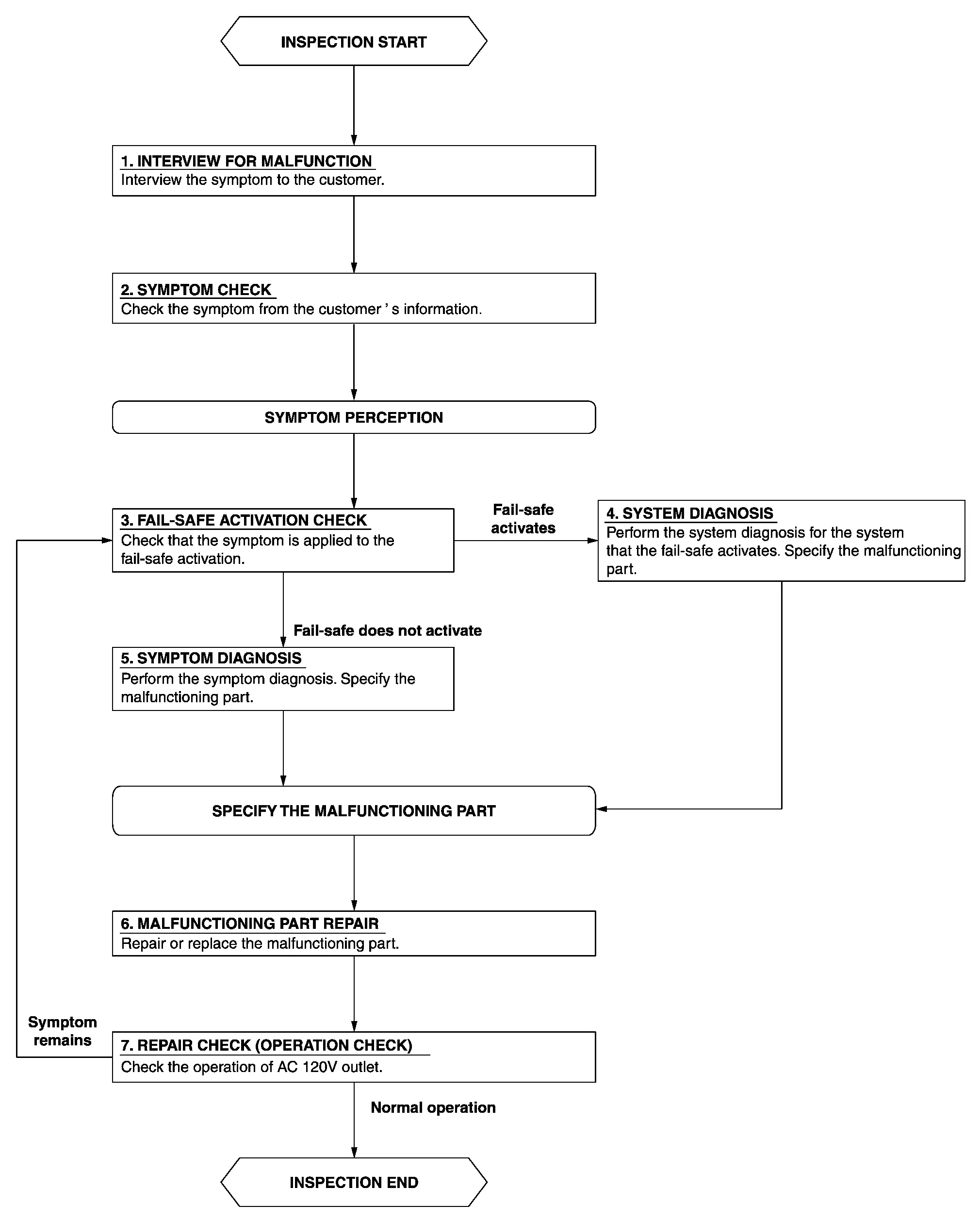

OVERALL SEQUENCE
DETAILED FLOW
INTERVIEW FOR MALFUNCTION
Interview the symptom to the customer.
>>GO TO 2.
SYMPTOM CHECK
Check the symptom from the customer's information.
>>GO TO 3.
FAIL-SAFE ACTIVATION CHECK
Check that the symptom is applied to the fail-safe activation.
Does the fail-safe activate?
YES>>GO TO 4.
NO>>GO TO 5.
SYSTEM DIAGNOSIS
Perform the system diagnosis for the system that the fail-safe activates. Specify the malfunctioning part.
>>GO TO 6.
SYMPTOM DIAGNOSIS
Perform the symptom diagnosis. Specify the malfunctioning part.
>>GO TO 6.
MALFUNCTIONING PART REPAIR
Repair or replace the malfunctioning part.
>>GO TO 7.
REPAIR CHECK (OPERATION CHECK)
Check the operation of AC 120 V outlet.
Does it operate normally?
YES>>INSPECTION END
NO>>GO TO 3.
