Nissan Armada 2025-2026 Service and Repair Manual: Diagnostic Work Sheet
DESCRIPTION
There are many operating conditions that lead to the malfunction of engine components. A good grasp of such conditions can make troubleshooting faster and more accurate.
In general, each customer feels differently about an incident. It is important to fully understand the symptoms or conditions for a customer complaint.

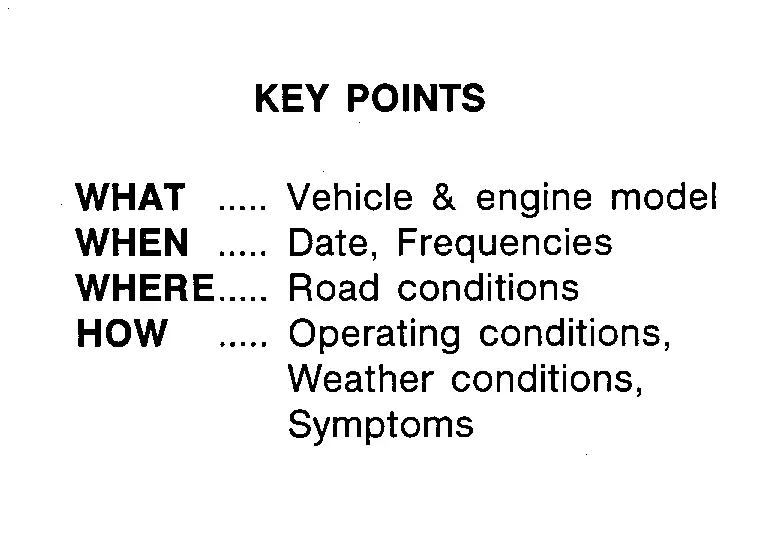

Utilize a diagnostic worksheet like the WORKSHEET SAMPLE below in order to organize all the information for troubleshooting.
Some conditions may cause the MIL to illuminate steady or blink and DTC to be detected. Examples:
Vehicle ran out of fuel, which caused the engine to misfire.

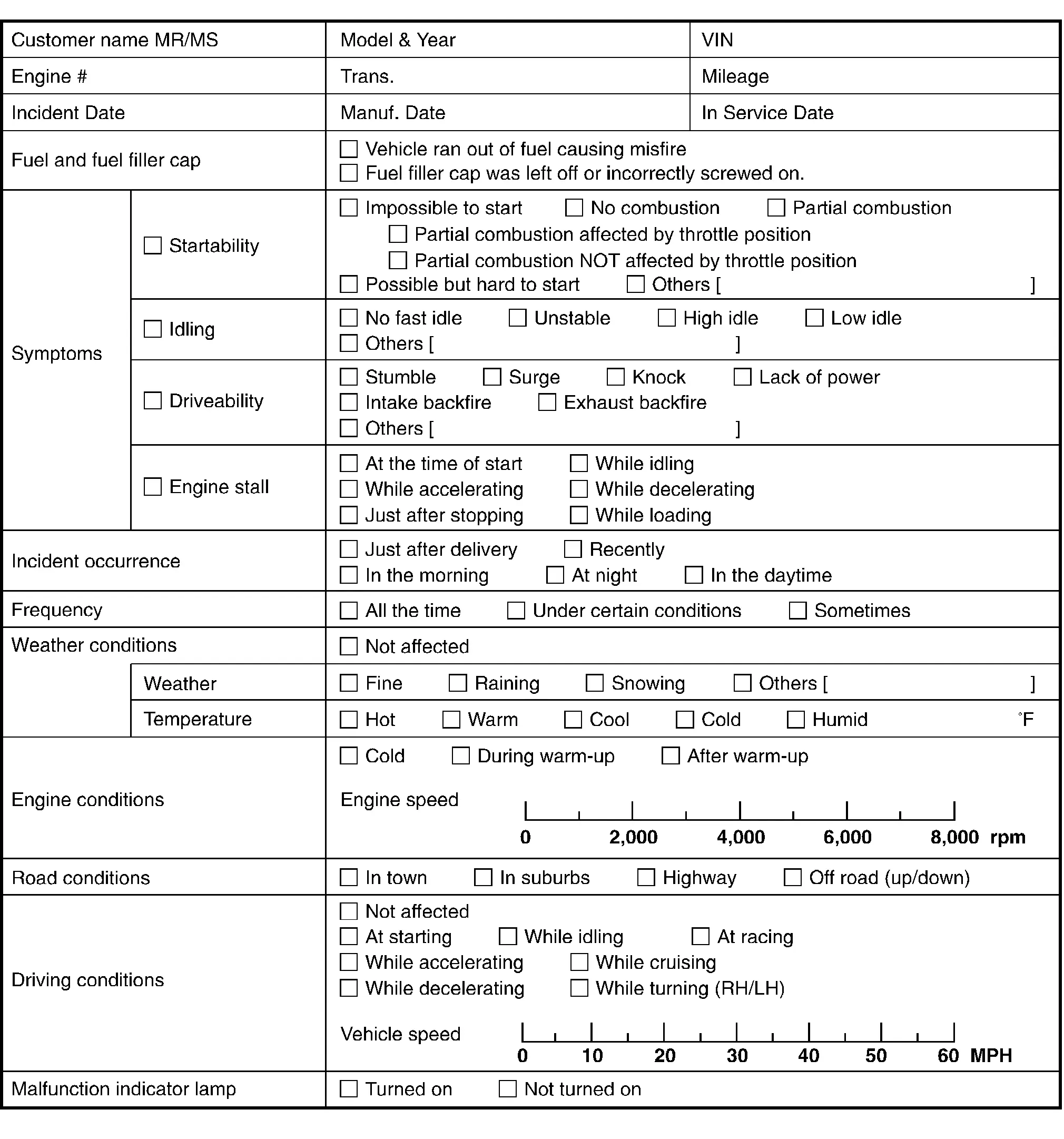

WORKSHEET SAMPLE
Work Flow
OVERALL SEQUENCE
*1: Include 1st trip DTC. *2: Include 1st trip freeze frame data.
DETAILED FLOW
GET INFORMATION FOR SYMPTOM
Get the detailed information from the customer about the symptom (the c ...
