Nissan Armada 2025-2026 Service and Repair Manual: Disassembly and Assembly

Nissan Armada 2025-2026 Service and Repair Manual / Body Interior / Instrument Panel — Removal and Installation / Front Center Console Assembly / Disassembly and Assembly

DISASSEMBLY

CAUTION:

When disassemble, always use a remover tool that is made of plastic.

Front Center Console Switch Finisher Assembly

Remove preset switch. Refer to Removal & Installation.

Remove electric shift selector. Refer to Removal and Installation.

Remove switch bracket.Remove fixing screws, and then remove switch bracket from front center console switch finisher assembly. Remove auto height mode control switch from switch bracket (with air suspension models). Refer to Removal and Installation Disengage fixing pawls, and then remove idle start/stop OFF switch from switch bracket.

Remove center ventilator grille (LH and RH). Refer to Removal and Installation.

Remove fixing screws, and then remove multi function switch.

Front Center Console Cup Holder Assembly

Remove front center console pocket mat.

Remove front center console cup holder mat.

Front Center Console Body Assembly

Remove front center console mat.

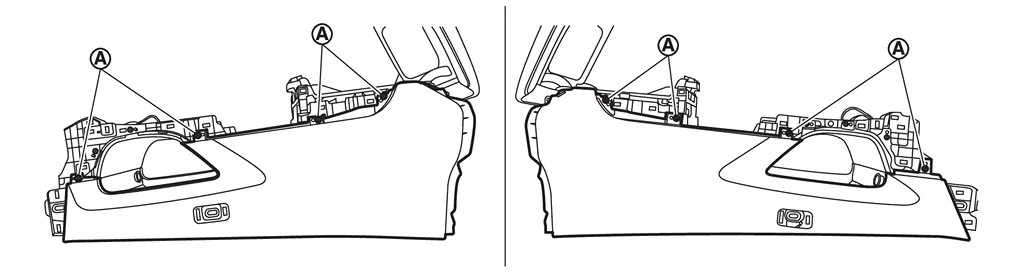

Remove front center console body panel (LH and RH).Remove front center console body panel (LH and RH) fixing screws .

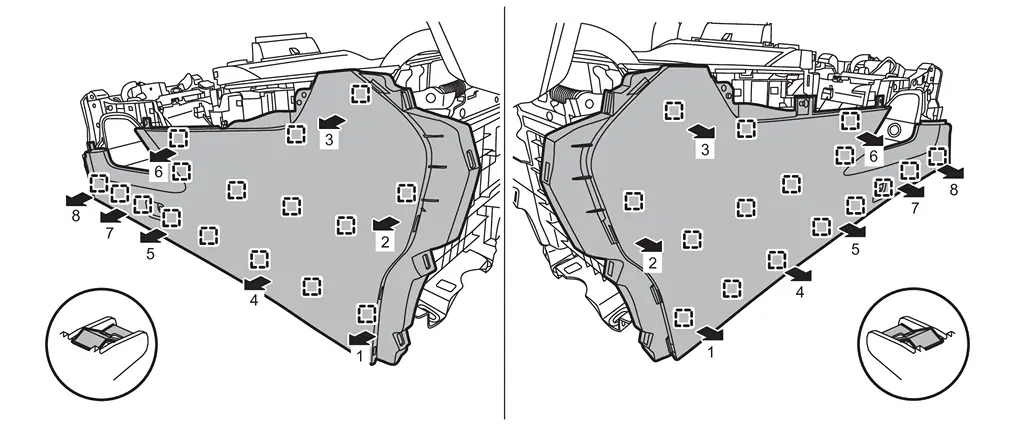

Disengage fixing metal clips according to numerical order 1→8 indicated by arrows as shown in the figure, and then remove front center console body panel (LH and RH).

: Metal clip

Remove fixing screws , and then remove front center console lid.

Remove front center console box tray.

Remove fixing screws , and then remove front center console lid opener switch.

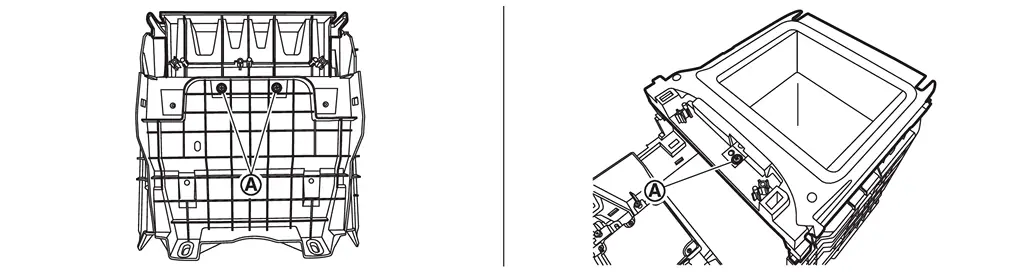

Remove front center console cover.Remove front center console box fixing screws .

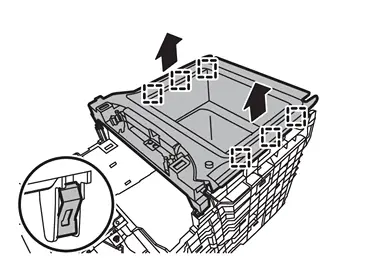

Disengage fixing metal clips, and then remove front center console cover.

: Metal clip

Front Center Console Rear Finisher Assembly

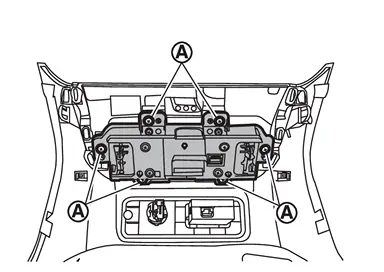

Remove fixing screws , and then remove rear A/C control and rear A/C control bracket as a set.

Remove rear A/C control and rear A/C control bracket. Refer to Removal and Installation.

ASSEMBLY

Assemble in the reverse order of disassembly.
