Nissan Armada 2025-2026 Service and Repair Manual: Disassembly and Assembly
DISASSEMBLY
Remove seatback trim and pad. Refer to Disassembly and Assembly.

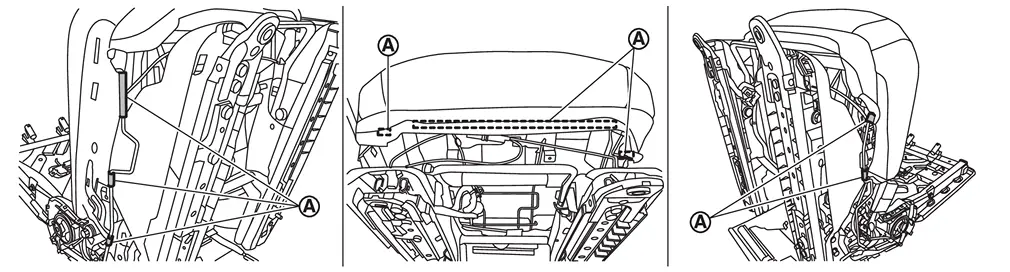

Disengage seat cushion trim fixing retainers
.
LH seat
: Vehicle front RH seat

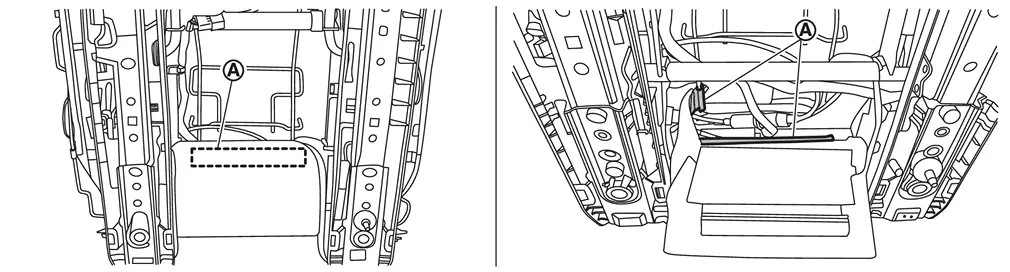

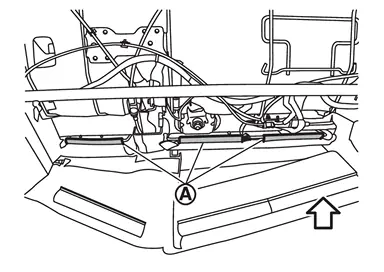

Disengage seat cushion trim fixing retainers .
LH seat
RH seat

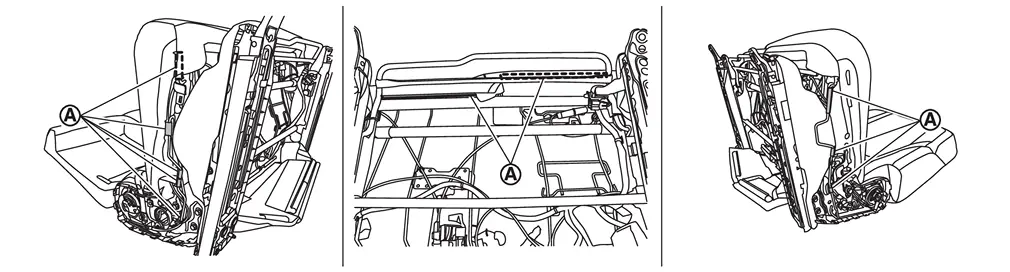

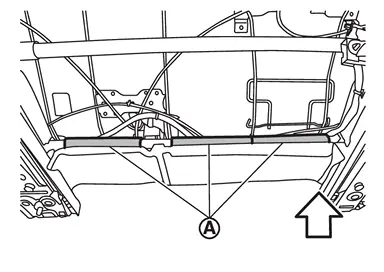

Disengage seat cushion trim fixing retainers (LH seat).
| : Vehicle front |
Disengage harness fixing clips of seat cushion, and then disconnect harness connectors.
CAUTION:
Remove seat cushion trim and pad as a set from seat frame assembly.
Remove hog rings, and then separate seat cushion trim and pad.
CAUTION:
Never disassemble seat cushion pad and seat cushion heater (if equipped).
ASSEMBLY
CAUTION:
Always install hog ring in position.
Never reuse hog ring after disassembly, using new hog ring.
Use new hog ring if removed or crimped unsuccessfully.
Be installed harnesses and harness fixing clips in position.
