Nissan Armada 2025-2026 Service and Repair Manual: Disassembly and Assembly
DISASSEMBLY
Disengage seat cushion trim fixing retainers
.

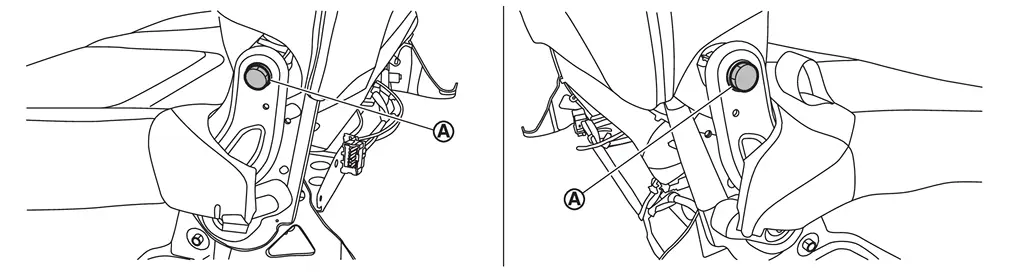

Remove hinge cover (LH and RH).Remove fixing screw .
 | : Pawl |

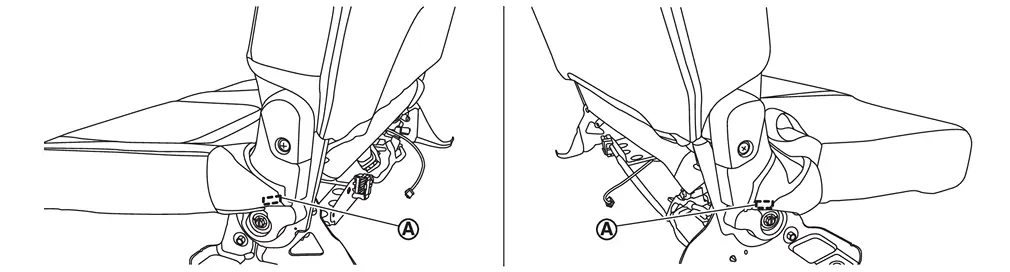

Remove seat cushion frame assembly mounting bolts .
Remove bushes from seat cushion frame assembly.

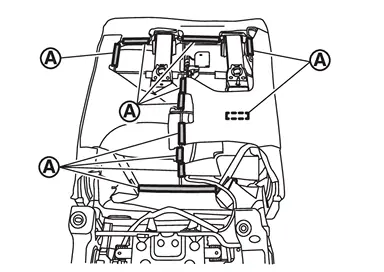

Disengage harness fixing clips, and then disconnect harness connectors.
CAUTION:
Remove seat cushion frame assembly.
Disengage seat cushion trim fixing retainers .
LH seat
RH seat
Remove seat cushion trim and pad as a set from seat cushion frame assembly.
Remove hog rings, and then separate seat cushion trim and pad.
CAUTION:
Remove seat buzzer from seat cushion frame assembly (power RH seat). Refer to Removal and Installation.
ASSEMBLY
CAUTION:
Always install hog ring in position.
Never reuse hog ring after disassembly, using new hog ring.
Use new hog ring if removed or crimped unsuccessfully.
Never reuse seatback frame assembly mounting bolts after disassembly, replace with new bolts.
Be installed harnesses and harness fixing clips in position.
