Nissan Armada 2025-2026 Service and Repair Manual: Draining
WARNING:
The ignition switch OFF.

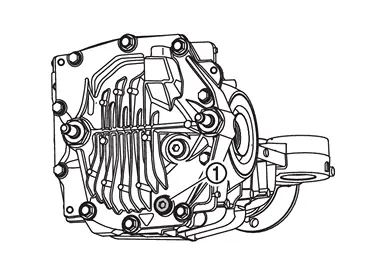

Remove drain plug
and gasket.
Drain gear oil.
Set a gasket on drain plug and install it to final drive assembly.
CAUTION:
Never reuse gasket.
Tighten drain plug to the specified torque. Refer to Exploded View.
Inspection
WARNING:
OIL LEAKAGE
Make sure that oil is not leaking from final drive assembly or around it.
OIL LEVEL
CAUTION:
The ignition switch OFF while checking oil level.
Set a gasket on filler plug and ins ...
Refilling
WARNING:
Recommended oil and capacity Refer to Fluids and Lubricants.
Set a gasket on filler plug and install it on final drive assembly.
CAUTION:
Never reuse gasket.
Tighten filler plug to the ...
