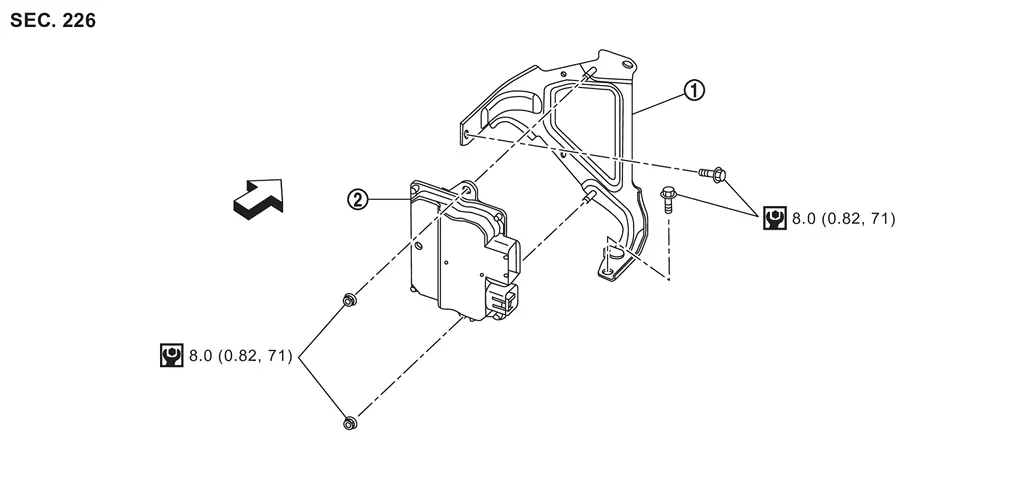

Nissan Armada 2025-2026 Service and Repair Manual: ELECTRIC INTAKE VALVE TIMING CONTROL MODULE : Exploded View
 | Bracket |  | Electric intake valve timing control module | ||
 | : Vehicle front | ||||
 | : N·m (kg-m, in-lb) | ||||
ELECTRIC INTAKE VALVE TIMING CONTROL MODULE : Removal & Installation
REMOVAL
Remove air cleaner body. Refer to Removal and Installation.
Remove harness clip to bracket.
Disconnect electric intake valve timing control module harness connector. HARNESS CONNECTOR (LEVER L ...
