Nissan Armada 2025-2026 Service and Repair Manual: EVAP CANISTER : Exploded View

Nissan Armada 2025-2026 Service and Repair Manual / Engine / Fuel System — Removal and Installation / Evap Canister / EVAP CANISTER : Exploded View

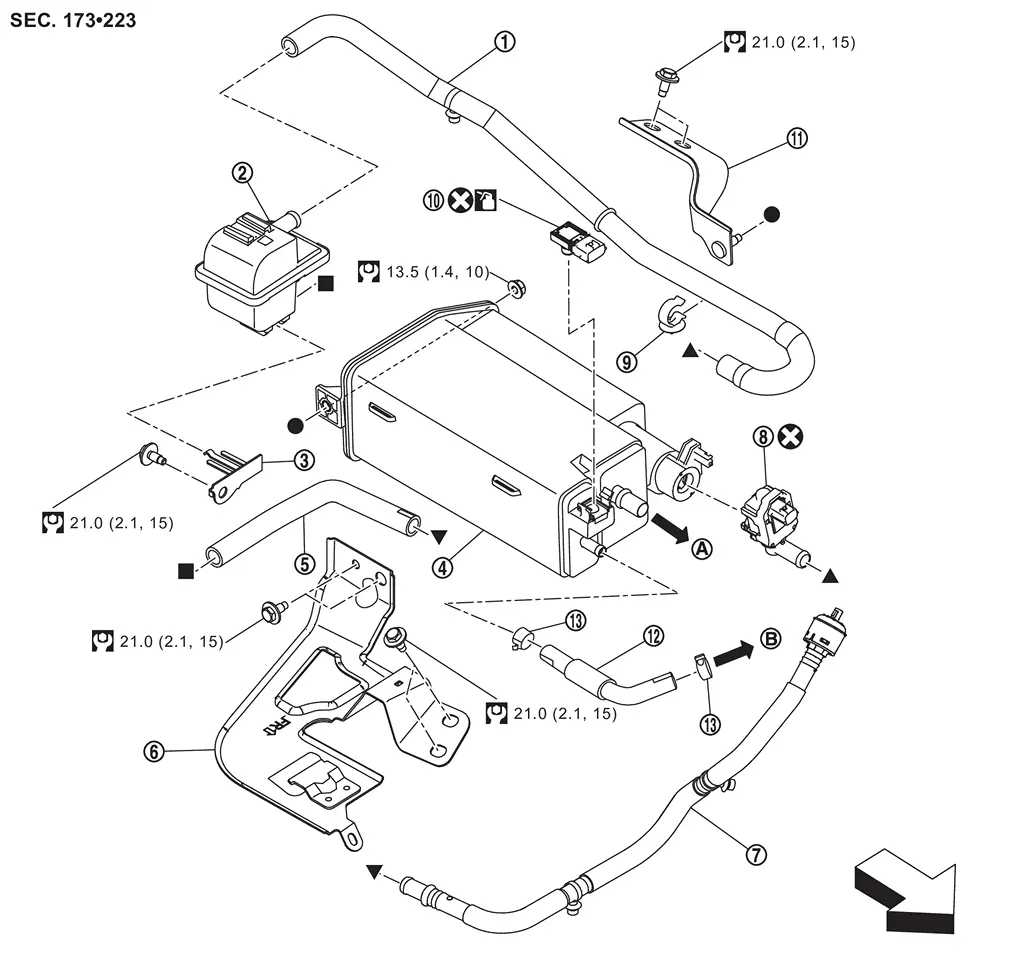

	Vent hose 1	Canister filter	Bracket 3
	EVAP canister	Vent hose 2	Bracket 1
	Vent hose 3	EVAP canister vent control valve	Clip
	EVAP control system pressure sensor	Bracket 2	Vent hose 4
	Clamp
	To fuel tank. Refer to FUEL TANK : Exploded View.	To engine. Refer to Hydraulic Layout.
	: Vehicle front
	: Always replace after every disassembly.
	: N·m (kg-m, ft-lb)
	: Should be lubricated with oil.
, , , : Indicates that the parts is connected at points with same symbols in actual vehicle.

Hydraulic Layout

EVAP canister purge volume control solenoid valve EVAP resonator EVAP line Fuel line Fuel tank Fuel filler neck EVAP canister ...
