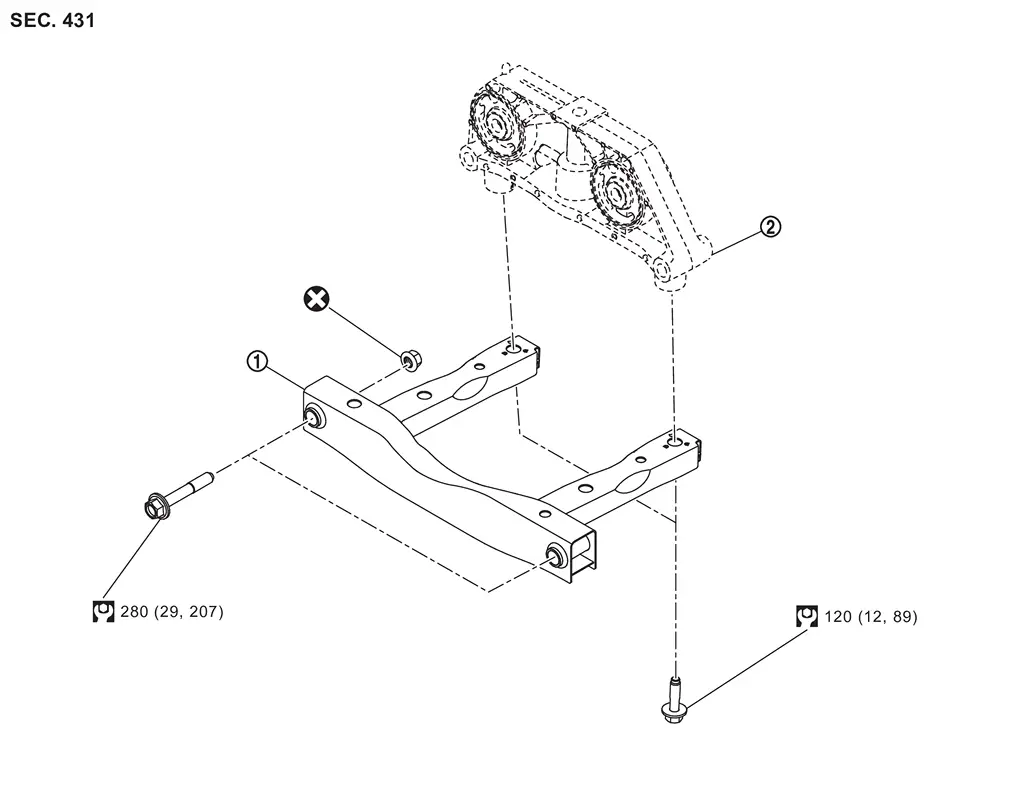

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Rear suspension member stay |  | Final drive mounting bracket | ||
 | : Always replace after every disassembly. | ||||
 | : N·m (kg-m, ft-lb) | ||||
Removal and Installation
WARNING:
REMOVAL
Remove rear suspension member stay mounting bolts and nuts.
Remove rear suspension member stay from vehicle.
Perform inspection after removal. Refer to Inspection.
INSTALLATION
Note t ...
