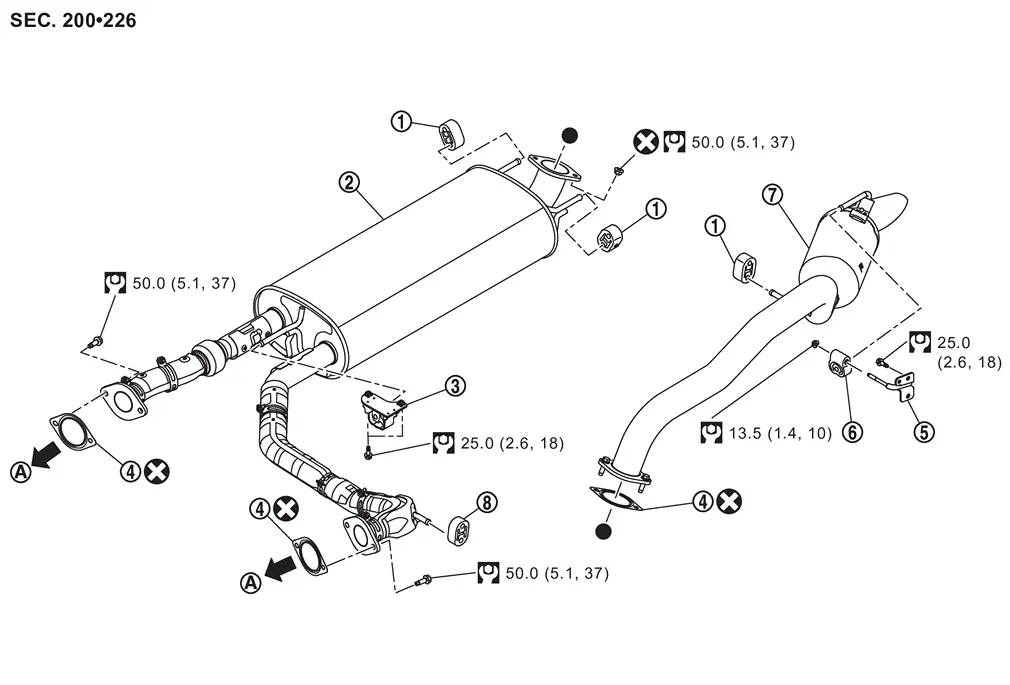

Nissan Armada 2025-2026 Service and Repair Manual: EXHAUST SYSTEM : Exploded View
 | Mounting rubber 1 |  | Main muffler |  | Mounting rubber 2 |
 | Gasket |  | Mounting bracket |  | Mounting rubber 3 |
 | Rear muffler |  | Mounting rubber 4 | ||
 | To catalyst. Refer to Exploded View. | ||||
 : N·m (kg-m, ft-lb) | |||||
 : Always replace after every disassembly. | |||||
 : Indicates that the parts is connected at points with same symbols in actual vehicle. | |||||
Exhaust System
...
EXHAUST SYSTEM : Removal & Installation
WARNING:
REMOVAL
Remove spare tire. Refer to Removal & Installation.
Remove rear muffler with the following procedure: Loosen the mounting nut of the mounting bracket .
CAUTION:
Be careful not ...
