Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

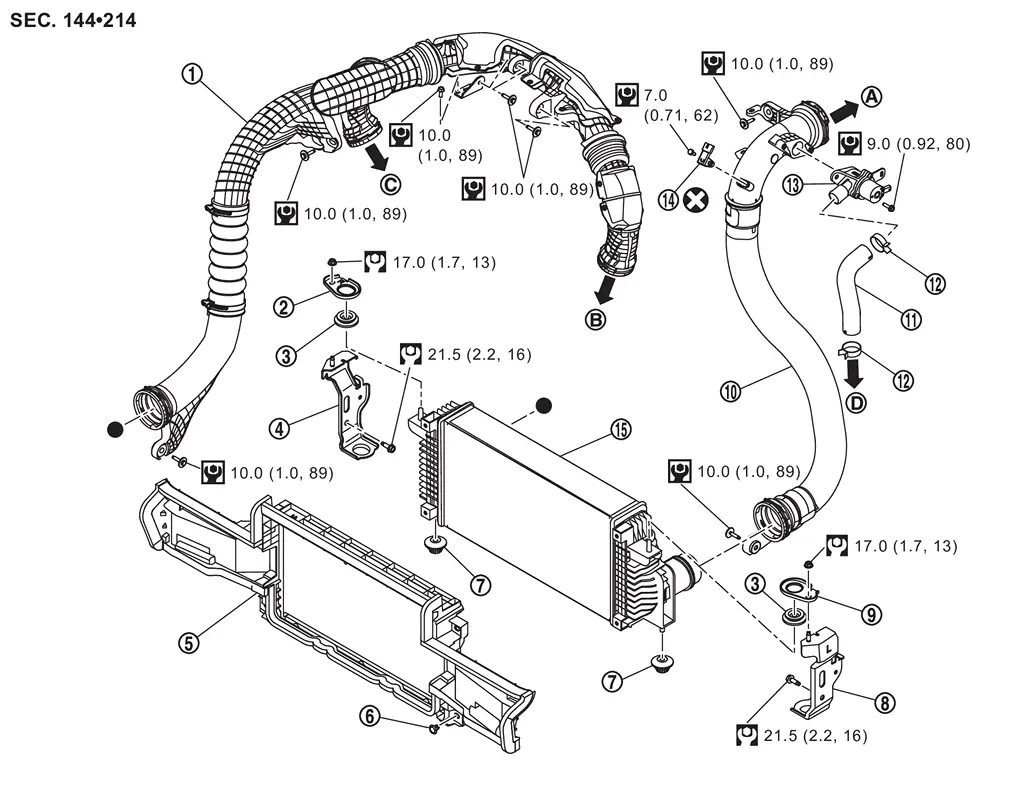

 | Air inlet tube 1 |  | Bracket 1 |  | Mounting rubber (upper) |
 | Bracket 2 |  | Charge air cooler cover |  | Clip |
 | Mounting rubber (lower) |  | Bracket 3 |  | Bracket 4 |
 | Air inlet tube 2 |  | Air inlet hose |  | Clamp |
 | Recirculation valve |  | Turbocharger boost sensor |  | Charge air cooler |
 | To electric throttle control actuator. Refer to Exploded View. |  | To turbocharger assembly (bank 2). Refer to Exploded View. |  | To turbocharger assembly (bank 1). Refer to Exploded View. |
 | To air duct. Refer to Exploded View. | ||||
 | : Always replace after every disassembly. | ||||
 | : N·m (kg-m, in-lb) | ||||
 | : N·m (kg-m, ft-lb) | ||||
 | : Indicates that the parts is connected at points with same symbols in actual vehicle. | ||||
Removal & Installation
WARNING:
REMOVAL
Remove engine cover. Refer to Removal and Installation.
Remove front under cover using a power tool (commercial service tool). Refer to Removal and Installation.
Remove air inlet tube ...
