Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

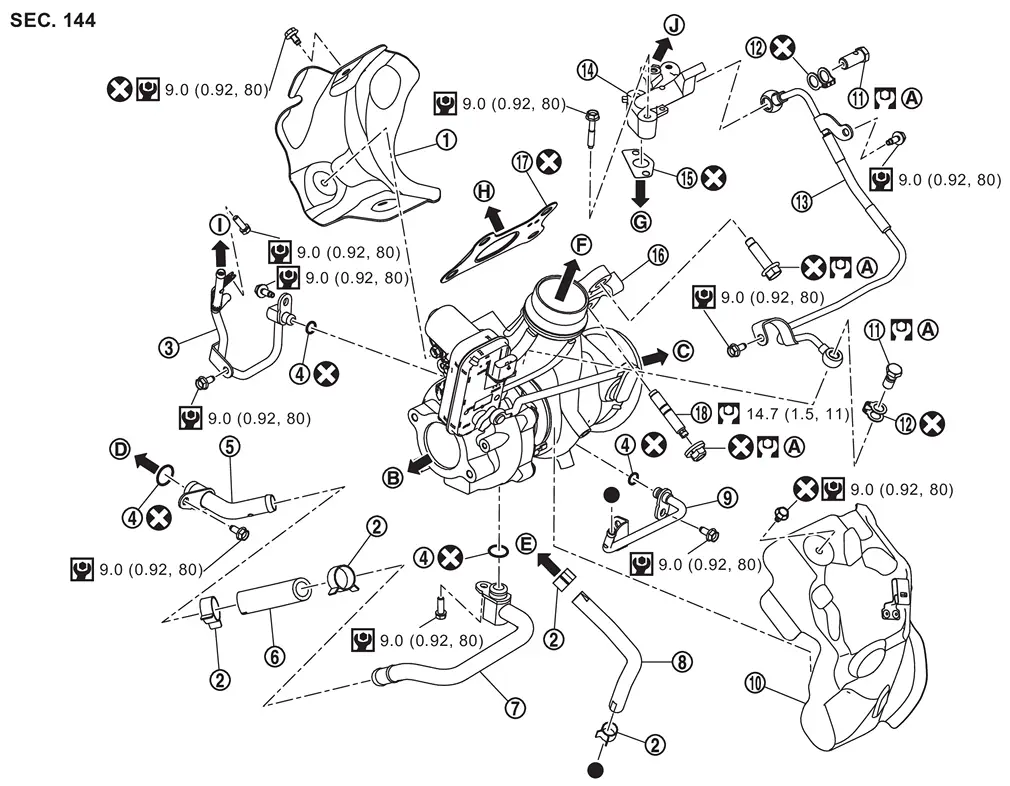

Bank 1 side
 | Water inlet hose |  | Clamp |  | Water inlet tube |
 | O-ring |  | Heat insulator (upper) |  | Oil return pipe 1 |
 | Oil return hose |  | Oil return pipe 2 |  | Heat insulator (lower) |
 | Water outlet tube |  | Turbocharger assembly |  | Gasket 1 |
 | Stud bolt |  | Oil feed tube |  | Eye bolt |
 | Gasket 2 | ||||
 | Comply with the installation procedure when tightening. Refer to Removal & Installation. |  | To air duct. Refer to Exploded View. |  | To catalyst converter (bank 2). Refer to Exploded View. |
 | To lower cylinder block.Refer to Exploded View. |  | To cylinder head (bank 1). Refer to Exploded View. |  | To air inlet tube 1. Refer to Exploded View. |
 | To oil inlet adapter. Refer to Bank 2 side. |  | To cylinder head (bank 1). Refer to Exploded View. |  | To water pipe assembly. Refer to Exploded View. |
 : N·m (kg-m, ft-lb) | |||||
 : N·m (kg-m, in-lb) | |||||
 : Always replace after every disassembly. | |||||

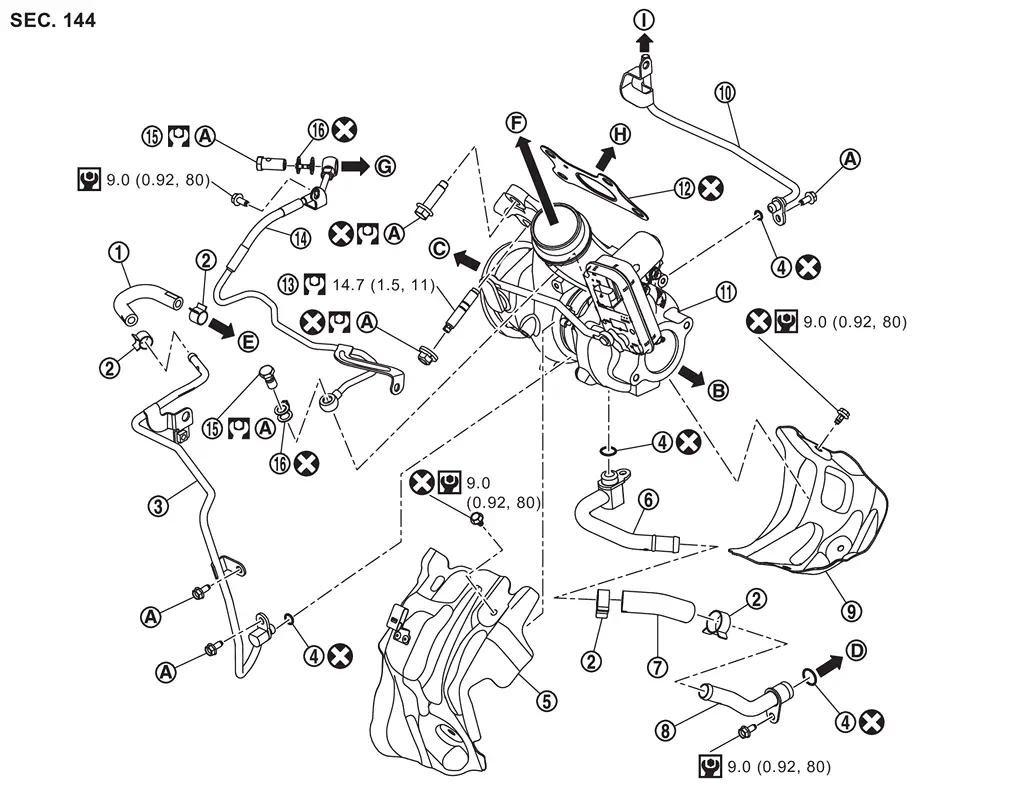

Bank 2 side
| Heat insulator (lower) | | Clamp | | Water inlet tube |
| O-ring | | Oil return pipe 2 | | Oil return hose |
| Oil return pipe 1 | | Water outlet hose | | Water outlet tube |
| Heat insulator (upper) | | Eye bolt | | Gasket 1 |
| Oil feed tube | | Oil inlet adapter | | Gasket 3 |
| Turbocharger assembly |  | Gasket 2 |  | Stud bolt |
| Comply with the installation procedure when tightening. Refer to Removal & Installation . | | To air duct. Refer to Exploded View. | | To catalyst converter (bank 2). Refer to Exploded View. |
| To lower cylinder block. Refer to Exploded View. | | To water pipe 2 assembly. Refer to Exploded View. | | To air inlet tube 1. Refer to Exploded View. |
| To cylinder block. Refer to Exploded View. | | To cylinder head (bank 2). Refer to Exploded View. | | To electric throttle control actuator. Refer to Exploded View. |
 | To oil feed tube. Refer to Bank 1 side. | ||||
| : N·m (kg-m, ft-lb) | |||||
| : N·m (kg-m, in-lb) | |||||
| : Always replace after every disassembly. | |||||
 : Indicates that the parts is connected at points with same symbols in actual vehicle. | |||||
Turbocharger
...
Removal & Installation
WARNING:
REMOVAL
Disconnect battery cables from negative terminal. Refer to Exploded View.
Drain engine coolant. Refer to ENGINE COOLANT : Draining.
CAUTION:
Perform this step when the engine is cold ...
